Shimano Tranx 500 TRX500PG - RH - 4.6:1 Line Capacity & Reel Setup Guide

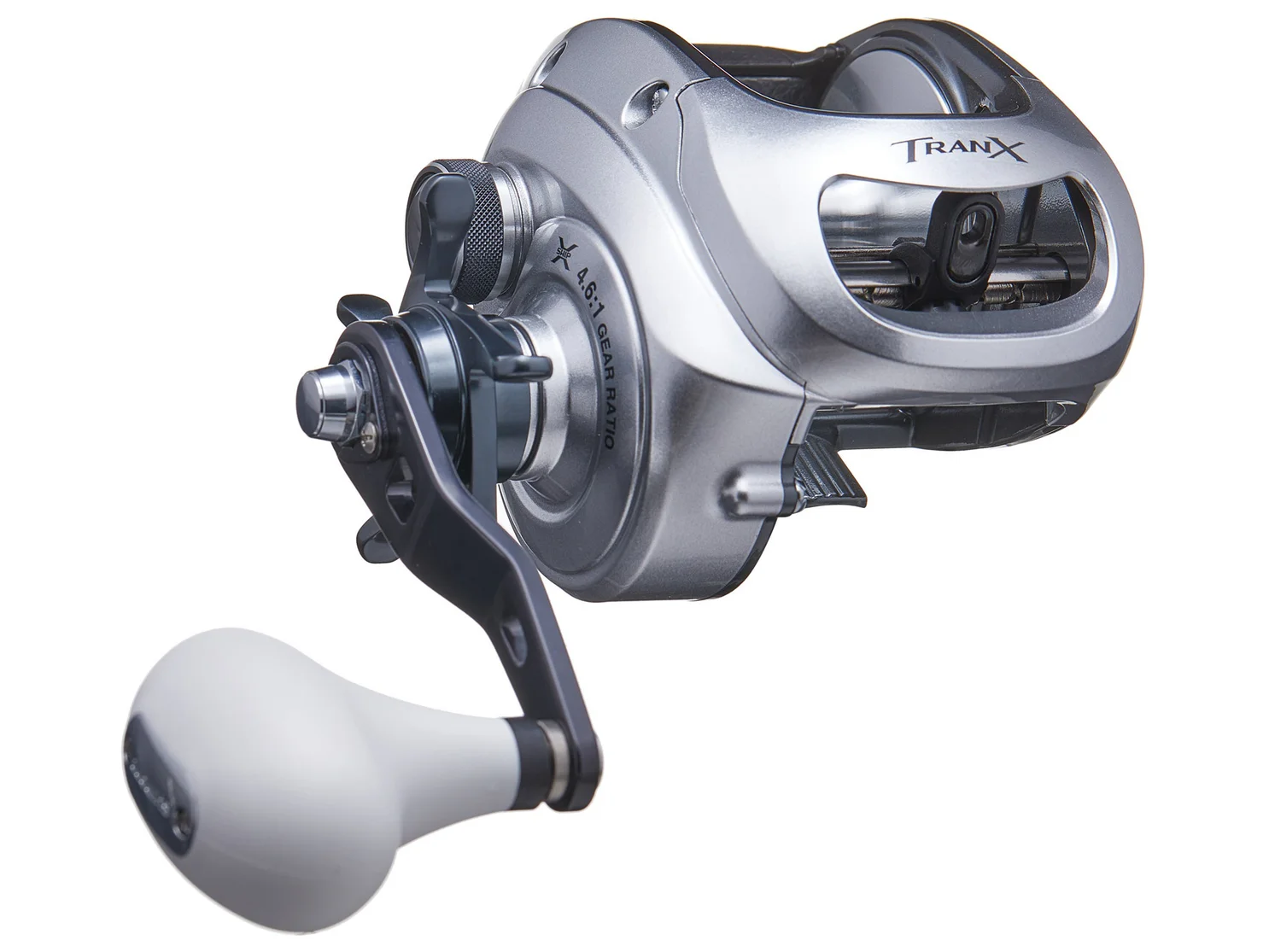

Built around a saltwater low-profile frame, the Shimano Tranx 500 TRX500PG - RH - 4.6:1 (TRX500PG) is intended for inshore saltwater, coastal fishing, bass, swimbaits, heavy cover, crankbaits, and moving baits. X-Ship supports the pinion gear at both ends to maintain alignment under load, while HAGANE Body uses a rigid metal body to limit flex and keep the gears aligned under load. Its 30-inch pickup favors controlled cadence with crankbaits and steady moving presentations.
Quick Answer: Best Line for the Shimano Tranx 500 TRX500PG - RH - 4.6:1
Best overall range: 50-80 lb braid
Simple alternative: 30-50 lb mono/fluoro
For a versatile starting point, use 30-50 lb mono/fluoro as a straight main line or 50-80 lb braid with a leader matched to the cover and lure. A short mono base can prevent braid slip and reduce how much premium line is needed.
Who Is the Shimano Tranx 500 TRX500PG - RH - 4.6:1 For?
This baitcaster makes the most sense for anglers fishing inshore saltwater, coastal fishing, bass, swimbaits, heavy cover, crankbaits, and moving baits. Its spool holds practical casting-line amounts without the bulk of a deep conventional reel. Use 30-50 lb mono/fluoro for a straightforward main line, or 50-80 lb braid when you want more strength for the same diameter and can manage braid carefully on the spool.
Use the Pre-Loaded Shimano Tranx 500 TRX500PG - RH - 4.6:1 ReelCalc Calculator
This calculator is pre-loaded for the exact Shimano Tranx 500 TRX500PG - RH - 4.6:1. Choose the actual line you plan to spool and ReelCalc automatically uses the appropriate published mono or braid capacity. In backing mode, the suggested main-line amount adjusts when needed to leave practical room for backing. The 30-inch retrieve is also loaded for the handle-turn estimate.
Best Line Setup for the Shimano Tranx 500 TRX500PG - RH - 4.6:1
A practical starting point for the Shimano Tranx 500 TRX500PG - RH - 4.6:1 is 50 lb braid over monofilament backing with a 30-50 lb mono/fluoro leader. A short mono base can prevent braid from slipping and can reduce how much premium line is needed, but this compact spool does not require a large backing layer. Since two lines with the same pound-test label can have different diameters, use the listed diameter of the exact line whenever it is available.
| Fishing Use | Suggested Line Setup |
|---|---|
| Inshore Saltwater | 50-65 lb braid with a 30-50 lb mono/fluoro leader |
| Coastal Fishing | 50-65 lb braid with a 30-50 lb mono/fluoro leader |
| Bass | 50-65 lb braid with a 30-50 lb mono/fluoro leader |
| Swimbaits | 65-80 lb braid |
| Straight-line setup | 30-50 lb mono/fluoro |
Shimano Tranx 500 TRX500PG - RH - 4.6:1 Line Capacity
Shimano lists the monofilament capacities as 30 lb / 160 yards, 40 lb / 120 yards, 50 lb / 100 yards. The published braid ratings are 50 lb / 420 yards, 65 lb / 270 yards, 80 lb / 210 yards. These factory ratings establish the spool's baseline, while the calculator adjusts the estimate for the diameter of the line you select.
| Line Type | Line Rating | Capacity |
|---|---|---|
| Monofilament | 30 lb | 160 yards |
| Monofilament | 40 lb | 120 yards |
| Monofilament | 50 lb | 100 yards |
| PowerPro Braid | 50 lb | 420 yards |
| PowerPro Braid | 65 lb | 270 yards |
| PowerPro Braid | 80 lb | 210 yards |
Shimano Tranx 500 TRX500PG - RH - 4.6:1 Specs
The Shimano Tranx 500 TRX500PG - RH - 4.6:1 uses a 4.6:1 gear ratio. Its 30-inch pickup favors controlled cadence with crankbaits and steady moving presentations. It weighs 20 oz and has a published maximum drag of 25 lb. Maximum drag is the reel's upper rating, not a suggestion to fish every setup at that setting.
| Specification | Shimano Tranx 500 TRX500PG - RH - 4.6:1 |
|---|---|
| Exact model | TRX500PG |
| Reel size | TRX500PG - RH - 4.6:1 |
| Retrieve hand | Right |
| Gear ratio | 4.6:1 |
| Line retrieve | 30 inches per crank |
| Weight | 20 oz |
| Maximum drag | 25 lb |
| Bearings | 7/1 |
| Mono capacity | 30 lb / 160 yards, 40 lb / 120 yards, 50 lb / 100 yards |
| Braid capacity | 50 lb / 420 yards, 65 lb / 270 yards, 80 lb / 210 yards |
Specifications checked against Shimano's official U.S. product specifications.
Shimano Tranx 500 TRX500PG - RH - 4.6:1 FAQs
What Size Braid Is Best for the Shimano Tranx 500 TRX500PG - RH - 4.6:1?
50-80 lb braid is the practical ReelCalc range for this baitcaster. Use the lighter end for open water and easier casting, and the stronger end around vegetation, docks, wood, frogs, or larger baits. Avoid choosing very thin braid only to maximize yardage because thin braid can dig into a baitcaster spool under load.
How Much Line Does the Shimano Tranx 500 TRX500PG - RH - 4.6:1 Hold?
The reel is published at 30 lb / 160 yards, 40 lb / 120 yards, 50 lb / 100 yards. Its listed braid ratings are 50 lb / 420 yards, 65 lb / 270 yards, 80 lb / 210 yards. Actual capacity can vary with the diameter of the exact line selected.
