Shimano Nexave FI 4000HG Line Capacity & Reel Setup Guide
ReelCalc Reel Setup Guide
Shimano Nexave FI 4000HG Line Capacity & Reel Setup Guide

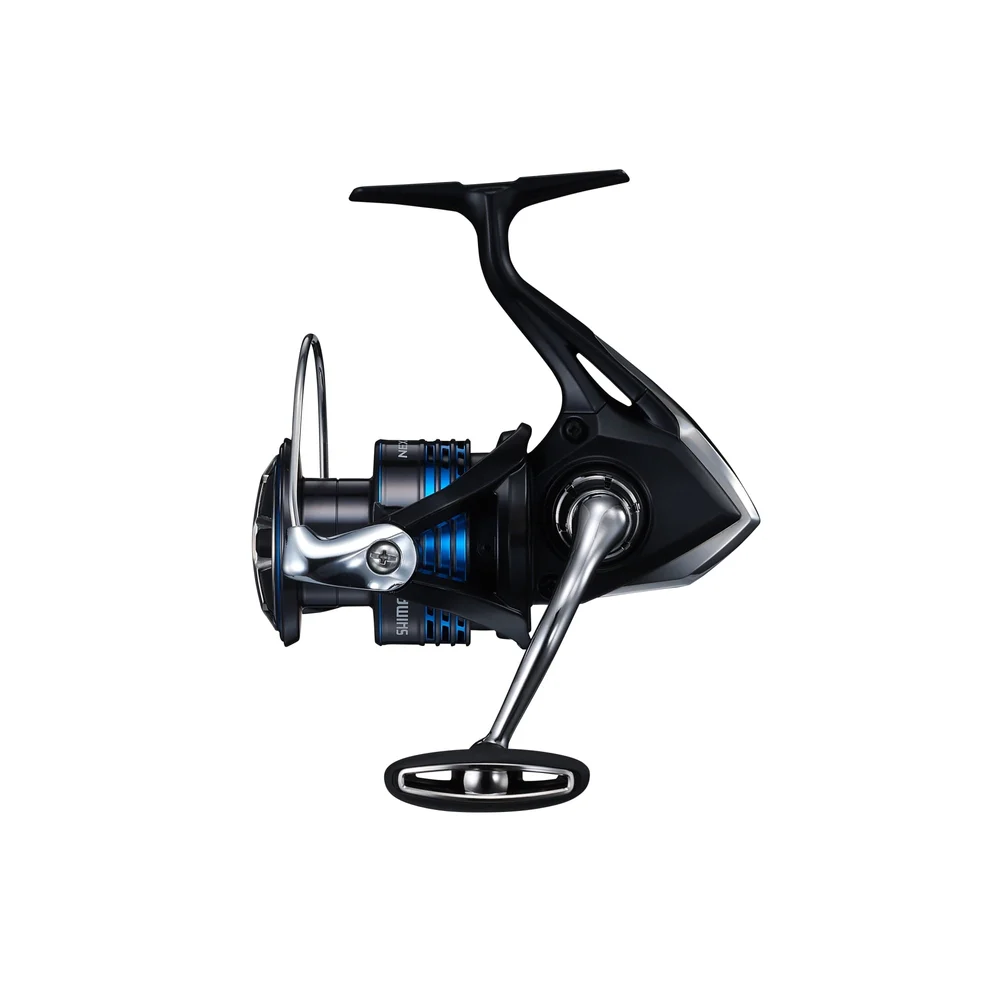

The Shimano Nexave FI 4000HG (NEX4000HGFI) is a 4000-size spinning reel. Propulsion Line Management System uses an angled spool lip to help line leave the spool with less friction, while G-Free Body positions the reel's center of gravity closer to your hand. Match your main line and leader to the fish and structure you expect to encounter. Use the line suggestions and preloaded calculator below to plan a full spool of main line or a shorter length over optional backing.
Quick Answer: Best Line for the Shimano Nexave FI 4000HG
Best overall range: 20-30 lb braid
Simple alternative: 10-12 lb mono/fluoro
For most anglers, start with 20-30 lb braid and add a 10-12 lb leader matched to the water and target species. A straightforward alternative is 10-12 lb mono/fluoro. Using more backing can reduce how much premium line you need.
Who Is the Shimano Nexave FI 4000HG For?
This reel makes the most sense for anglers fishing larger bass, pike, catfish, and light saltwater. Its published capacity gives you room to choose between a simple 10-12 lb mono/fluoro setup or a thinner 20-30 lb braid setup with a leader. That flexibility is useful when the same reel may see light presentations one day and stronger fish or mixed cover the next.
Use the Pre-Loaded Nexave FI 4000 ReelCalc Calculator
This calculator is pre-loaded for the exact Shimano Nexave FI 4000HG. Choose the actual line you plan to spool and ReelCalc automatically uses the appropriate published mono or braid capacity. In backing mode, the suggested main-line amount adjusts when needed to leave practical room for backing. The 37-inch retrieve is also loaded for the handle-turn estimate.
Best Line Setup for the Shimano Nexave FI 4000HG
A practical starting point for the Shimano Nexave FI 4000HG is 20 lb braid over monofilament backing with a 10-12 lb leader. Backing lets you put the useful amount of working line on top without filling the entire spool with premium line. Since two lines with the same pound-test label can have different diameters, use the listed diameter of the exact line whenever it is available.
| Fishing Use | Suggested Line Setup |
|---|---|
| Larger Bass | 20-30 lb braid with a 10-12 lb leader |
| Pike | 30 lb braid with a 30-50 lb fluorocarbon or wire leader |
| Catfish | 30 lb braid with a 20-30 lb monofilament leader |
| Light Saltwater | 20 lb braid with a 20 lb mono/fluoro leader |
| Simple straight-line setup | 10-12 lb mono/fluoro |
Shimano Nexave FI 4000HG Line Capacity
Shimano lists the monofilament capacities as 10 lb / 200 yards, 12 lb / 160 yards. The published braid ratings are 15 lb / 230 yards, 30 lb / 180 yards, 50 lb / 120 yards. These factory ratings establish the spool's baseline, while the calculator adjusts the estimate for the diameter of the line you select.
| Line Type | Line Rating | Capacity |
|---|---|---|
| Monofilament | 10 lb | 200 yards |
| Monofilament | 12 lb | 160 yards |
| PowerPro Braid | 15 lb | 230 yards |
| PowerPro Braid | 30 lb | 180 yards |
| PowerPro Braid | 50 lb | 120 yards |
Shimano Nexave FI 4000HG Specs
The Shimano Nexave FI 4000HG uses a 5.8:1 gear ratio and retrieves 37 inches per handle turn, which helps pick up slack without making the reel oversized for its intended uses. It weighs 10.8 oz and has a published maximum drag of 24 lb. Maximum drag is the reel's upper rating, not a suggestion to fish every setup at that setting.
| Specification | Shimano Nexave FI 4000HG |
|---|---|
| Exact model | NEX4000HGFI |
| Reel size | 4000HG |
| Gear ratio | 5.8:1 |
| Line retrieve | 37 inches per crank |
| Weight | 10.8 oz |
| Maximum drag | 24 lb |
| Bearings | 3/1 |
| Mono capacity | 10 lb / 200 yards, 12 lb / 160 yards |
| Braid capacity | 15 lb / 230 yards, 30 lb / 180 yards, 50 lb / 120 yards |
Specifications checked against Shimano's official U.S. product specifications.
Shimano Nexave FI 4000HG FAQs
What Size Braid Is Best for the Shimano Nexave FI 4000HG?
20-30 lb braid is the practical ReelCalc range for this reel. Use the lighter end for finesse presentations, trout, and open water. Move toward the stronger end for bass, current, vegetation, or situations where a little more abrasion resistance and control are useful.
How Much Line Does the Shimano Nexave FI 4000HG Hold?
The reel is published at 10 lb / 200 yards, 12 lb / 160 yards. Its listed braid ratings are 15 lb / 230 yards, 30 lb / 180 yards, 50 lb / 120 yards. Actual capacity can vary with the diameter of the exact line selected.
