PENN Fierce V 3000 Line Capacity & Reel Setup Guide
ReelCalc Reel Setup Guide
PENN Fierce V 3000 Line Capacity & Reel Setup Guide
Moving to the 3000 gives you a 10 lb / 165-yard mono rating and a 20 lb / 180-yard braid reference. HT-100 carbon-fiber drag washers provide drag pressure when a fish takes line. Use the calculator below with your exact line to plan a full spool or work out optional backing.
Quick Answer: Best Line for the PENN Fierce V 3000
Best overall range: 10-20 lb braid
Simple alternative: 6-12 lb mono/fluoro
For most anglers, start with 10-20 lb braid and add a 6-12 lb leader matched to the water and target species. A straightforward alternative is 6-12 lb mono/fluoro.
Who Is the PENN Fierce V 3000 For?
For inshore lures and light bait fishing, start with the rod's line range and the cover you expect to fish. ReelCalc's 10-20 lb braid and 6-12 lb mono/fluoro ranges are setup suggestions, not extra manufacturer ratings. Choose the lighter end for open water, and move up when the rod, cover and presentation call for it.
Use the Pre-Loaded Fierce V 3000 ReelCalc Calculator
The PENN Fierce V 3000 is already selected. Capacity Only estimates a full spool; Backing + Main Line lets you choose a working length and estimate the backing beneath it. Both use the diameter of your selected line.
Best Line Setup for the PENN Fierce V 3000
10 lb braid over monofilament backing with a 6-12 lb leader is a starting suggestion for this reel. You can fill the spool with main line, or use backing beneath a shorter working section. Select the actual line and its listed diameter before deciding how many yards to put on.
| Fishing Use | Suggested Line Setup |
|---|---|
| inshore lures and light bait fishing | 10 lb braid with a 6-12 lb leader |
| Simple straight-line setup | 6-12 lb mono/fluoro |
PENN Fierce V 3000 Line Capacity
The table keeps the published pound-test ratings and the verified millimeter ratings separate. ReelCalc uses a verified diameter rating for the matching line material when available, then scales it to your chosen line. A pound-test label alone does not tell you its thickness.
| Line Type | Line Rating | Capacity |
|---|---|---|
| Monofilament | 10 lb | 165 yards |
| Braid | 20 lb | 180 yards |
| Monofilament | 0.31 mm | 150 m (about 164 yd) |
| Braid | 0.29 mm | 165 m (about 180 yd) |

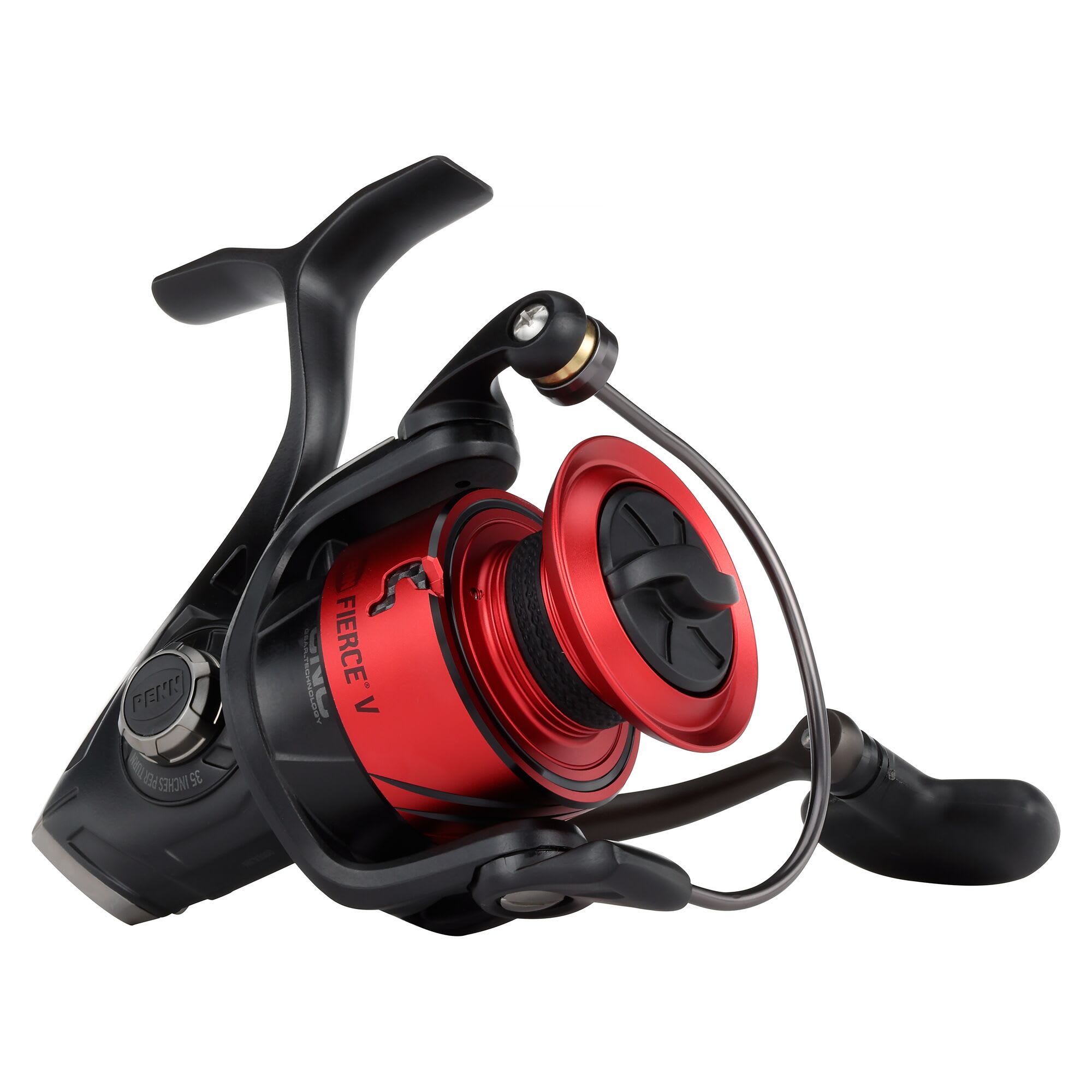

PENN Fierce V 3000 Specs
These are published specifications for FRCV3000. Retrieve is the listed amount per turn at the rated fill level, not a fixed value as the spool empties. Maximum drag is an upper rating, not the setting to use with every line.
| Specification | PENN Fierce V 3000 |
|---|---|
| Exact model | FRCV3000 |
| Reel size | 3000 |
| Gear ratio | 6.2:1 |
| Line retrieve | 35 inches per crank |
| Weight | 11.5 oz |
| Maximum drag | 15 lb |
| Bearings | 4+1 |
| Mono capacity | 10 lb / 165 yards |
| Braid capacity | 20 lb / 180 yards |
Specifications checked against PENN's official U.S. product specifications.
Sources checked October 12, 2026: Manufacturer product listing; Exact-model dealer specification supplement; Manufacturer capacity table. Specifications and setup guidance, not a hands-on reel review.
PENN Fierce V 3000 FAQs
What Size Braid Is Best for the PENN Fierce V 3000?
Start with 10-20 lb braid, then match the strength to your rod and fishing conditions. For a braid-and-leader setup, choose the leader for the cover and presentation rather than matching the braid label alone. Backing is optional; check that braid is secured against slipping if you tie directly to the spool.
How Much Line Does the PENN Fierce V 3000 Hold?
Use the factory ratings in the capacity table as reference points, not a promise that every line of that pound test fits the same amount. Select your exact line in the calculator, and watch the reel's fill clearance as you spool under steady tension.
