Abu Garcia Revo X LP LP Line Capacity & Reel Setup Guide
ReelCalc Reel Setup Guide
Abu Garcia Revo X LP LP Line Capacity & Reel Setup Guide

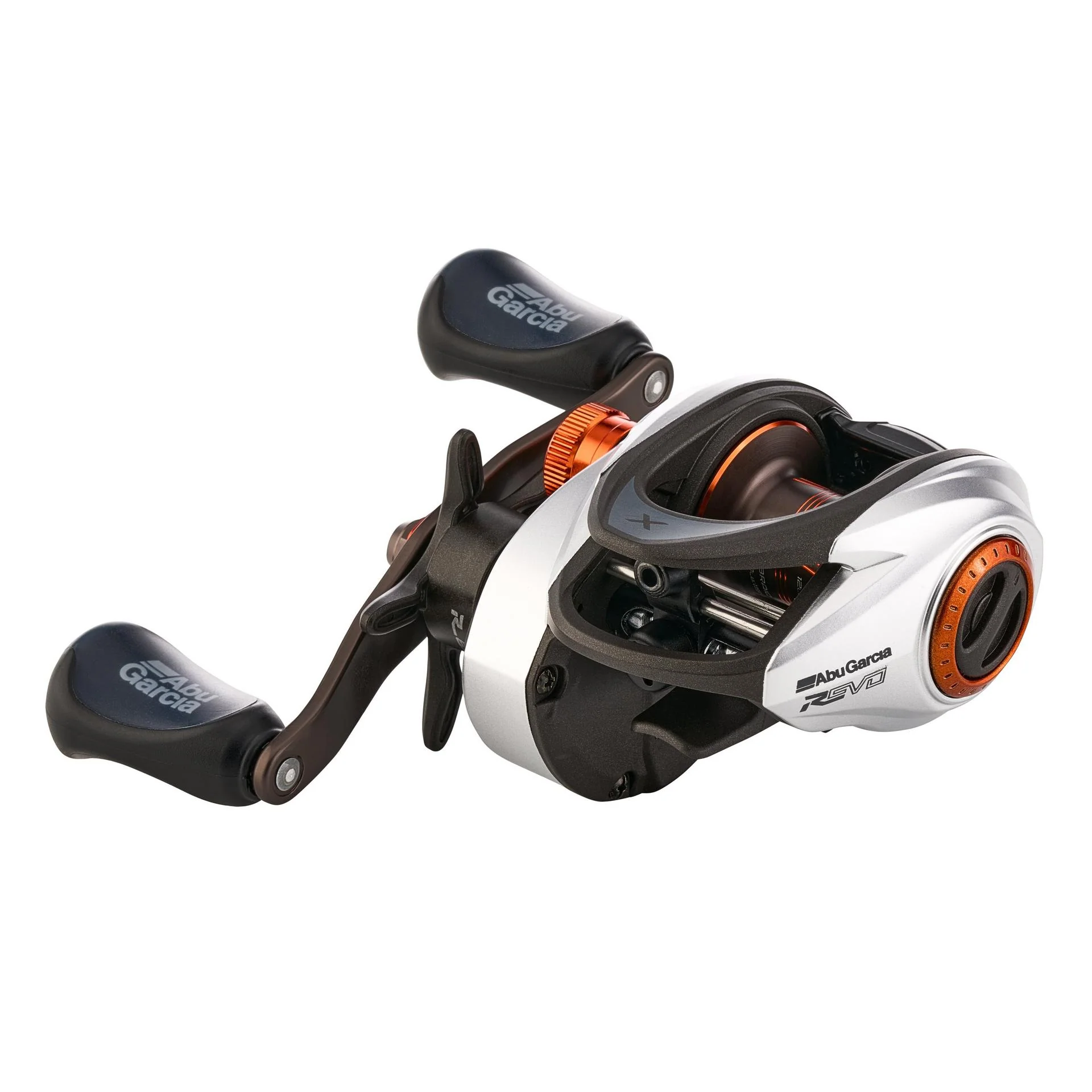

The Abu Garcia Revo X LP LP (REVO5 X-W LP) falls in the standard low-profile class and is intended for bass, general freshwater, jigs, Texas rigs, moving baits, topwater, crankbaits, and moving baits. 7.3 oz, 22 inches of line pickup per handle turn, and 20 lb of published maximum drag define the working scale of this exact model. Its 22-inch pickup favors controlled cadence with crankbaits and steady moving presentations.
Quick Answer: Best Line for the Abu Garcia Revo X LP LP
Best overall range: 20-50 lb braid
Simple alternative: 10-15 lb mono/fluoro
For a versatile starting point, use 10-15 lb mono/fluoro as a straight main line or 20-50 lb braid with a leader matched to the cover and lure. A short mono base can prevent braid slip and reduce how much premium line is needed.
Who Is the Abu Garcia Revo X LP LP For?
This baitcaster makes the most sense for anglers fishing bass, general freshwater, jigs, Texas rigs, moving baits, topwater, crankbaits, and moving baits. Its spool holds practical casting-line amounts without the bulk of a deep conventional reel. Use 10-15 lb mono/fluoro for a straightforward main line, or 20-50 lb braid when you want more strength for the same diameter and can manage braid carefully on the spool.
Use the Pre-Loaded Abu Garcia Revo X LP LP ReelCalc Calculator
This calculator is pre-loaded for the exact Abu Garcia Revo X LP LP. Choose the actual line you plan to spool and ReelCalc automatically uses the appropriate published mono or braid capacity. In backing mode, the suggested main-line amount adjusts when needed to leave practical room for backing. The 22-inch retrieve is also loaded for the handle-turn estimate.
Best Line Setup for the Abu Garcia Revo X LP LP
A practical starting point for the Abu Garcia Revo X LP LP is 20 lb braid over monofilament backing with a 10-15 lb mono/fluoro leader. A short mono base can prevent braid from slipping and can reduce how much premium line is needed, but this compact spool does not require a large backing layer. Since two lines with the same pound-test label can have different diameters, use the listed diameter of the exact line whenever it is available.
| Fishing Use | Suggested Line Setup |
|---|---|
| Bass | 20-40 lb braid with a 10-15 lb mono/fluoro leader |
| General Freshwater | 20-40 lb braid with a 10-15 lb mono/fluoro leader |
| Jigs | 20-40 lb braid with a 10-15 lb mono/fluoro leader |
| Texas Rigs | 20-40 lb braid with a 10-15 lb mono/fluoro leader |
| Straight-line setup | 10-15 lb mono/fluoro |
Abu Garcia Revo X LP LP Line Capacity
Abu Garcia lists the monofilament capacities as 10 lb / 135 yards, 12 lb / 110 yards, 17 lb / 80 yards. The published braid ratings are 20 lb / 145 yards, 30 lb / 110 yards, 50 lb / 75 yards. These factory ratings establish the spool's baseline, while the calculator adjusts the estimate for the diameter of the line you select.
| Line Type | Line Rating | Capacity |
|---|---|---|
| Monofilament | 10 lb | 135 yards |
| Monofilament | 12 lb | 110 yards |
| Monofilament | 17 lb | 80 yards |
| Braid | 20 lb | 145 yards |
| Braid | 30 lb | 110 yards |
| Braid | 50 lb | 75 yards |
Abu Garcia Revo X LP LP Specs
The Abu Garcia Revo X LP LP uses a 5.4:1 gear ratio. Its 22-inch pickup favors controlled cadence with crankbaits and steady moving presentations. It weighs 7.3 oz and has a published maximum drag of 20 lb. Maximum drag is the reel's upper rating, not a suggestion to fish every setup at that setting.
| Specification | Abu Garcia Revo X LP LP |
|---|---|
| Exact model | REVO5 X-W LP |
| Reel size | LP |
| Retrieve hand | Right |
| Gear ratio | 5.4:1 |
| Line retrieve | 22 inches per crank |
| Weight | 7.3 oz |
| Maximum drag | 20 lb |
| Bearings | 7SS + 1RB |
| Mono capacity | 10 lb / 135 yards, 12 lb / 110 yards, 17 lb / 80 yards |
| Braid capacity | 20 lb / 145 yards, 30 lb / 110 yards, 50 lb / 75 yards |
Specifications checked against Abu Garcia's official U.S. product specifications.
Abu Garcia Revo X LP LP FAQs
What Size Braid Is Best for the Abu Garcia Revo X LP LP?
20-50 lb braid is the practical ReelCalc range for this baitcaster. Use the lighter end for open water and easier casting, and the stronger end around vegetation, docks, wood, frogs, or larger baits. Avoid choosing very thin braid only to maximize yardage because thin braid can dig into a baitcaster spool under load.
How Much Line Does the Abu Garcia Revo X LP LP Hold?
The reel is published at 10 lb / 135 yards, 12 lb / 110 yards, 17 lb / 80 yards. Its listed braid ratings are 20 lb / 145 yards, 30 lb / 110 yards, 50 lb / 75 yards. Actual capacity can vary with the diameter of the exact line selected.
