Stren Original Monofilament
Stren Original Monofilament
Diameter chart, reel capacity & backing guide
Stren Original is the purple-package monofilament family, distinct from MagnaThin, Crappie Mono and High Impact. This guide uses the manufacturer's 2016 US filler chart. It is a dated specification reference, not a claim that every historical package remains available today.
- Construction
- Monofilament; UV Guard treatment
- Listed strengths
- 4-30 lb
- Line type
- Monofilament main line
A full mono fill with clear package limits
Original gives anglers a broad range of mono diameters to compare for a spinning or casting setup. Start with the rod, lure and cover, then check the exact diameter against the reel. A reel labeled for 10 lb line does not require 10 lb Original. The upper end of the range occupies substantially more space, and a smaller retail package at the heavier strengths does not imply a smaller reel is suitable.
Stren Original diameter chart
2016 US Original filler-spool specifications only. Clear and Clear/Blue Fluorescent are documented at the listed 4-20 lb strengths; 25 lb / 250 yd and 30 lb / 220 yd are Clear/Blue Fluorescent only. Pony, economy and service spools are not included. Historical specifications do not establish current availability. Check the exact package label.
| Strength | Inches | mm | Spools (yd) |
|---|---|---|---|
| 4 lb | 0.008 | 0.2032 | 330 |
| 6 lb | 0.009 | 0.2286 | 330 |
| 8 lb | 0.011 | 0.2794 | 330 |
| 10 lb | 0.012 | 0.3048 | 330 |
| 12 lb | 0.013 | 0.3302 | 330 |
| 14 lb | 0.014 | 0.3556 | 330 |
| 17 lb | 0.016 | 0.4064 | 330 |
| 20 lb | 0.018 | 0.4572 | 300 |
| 25 lb | 0.020 | 0.508 | 250 |
| 30 lb | 0.022 | 0.5588 | 220 |
Choosing your Stren Original strength
The 4-8 lb entries provide the light end of this archived range. Select them for an appropriate light-line setup, not simply to maximize the number of yards on a spool.
Compare the 10-17 lb choices by diameter as well as test. The reel's volume, rod limits, casting load and contact with cover all matter; capacity alone cannot choose strength.
The 20-30 lb entries need equipment suited to thicker mono. Keep their changing filler lengths separate from the thinner strengths rather than assuming every purple package contains the same yardage.
This is a manufacturer-specification guide, not a hands-on strength, casting or abrasion test.
Want a guided recommendation?
Continue in the Setup WizardBacking, working line & leaders
Use a full mono fill as the starting point
Original can be the entire line on the reel. A separate anti-slip mono layer is not needed beneath another mono just because braid setups sometimes use one. Follow the reel's attachment and fill instructions.
Calculate from the selected package
The archived filler table lists 330 yards through 17 lb, then 300, 250 and 220 yards at 20, 25 and 30 lb. Plan a full fill or multiple smaller fills from the correct entry, allowing for trimming.
Use backing only with a purpose
A fresh working section over sound backing can reduce replacement line use, but it introduces a connection. Keep that knot below the longest expected cast and the reserve needed for fish runs.
Stren Original questions, answered
They are verified offerings from the 2016 US manufacturer catalog. Current availability and any later package changes were not established; match the package in hand before buying or spooling.
Is every Original filler spool 330 yards?No. This edition reduces filler yardage above 17 lb. The chart preserves those strength-specific lengths rather than assigning one length to the whole family.
Does Original need another mono underneath it?Not for the anti-slip reason associated with braid. A full Original fill is a normal starting plan. A shorter working section over backing is an optional volume and replacement decision.
Can I use MagnaThin's diameter for Original?No. They are separate Stren products. The same strength label does not establish the same diameter, package length or capacity.
Specifications & sources
Checked September 13, 2026 against the original manufacturer's 2016 catalog, preserved by WesternBass. Inch diameters and filler-spool lengths were visually checked in the page image; millimeters are explicit conversions. The genuine product artwork is from the same catalog. This source establishes historical specifications, not current stock or unchanged packaging.
Calculations use the catalog's listed inch diameters. Published inch and millimeter values may differ slightly because of rounding.
- Stren 2016 manufacturer Original chart Archived official US catalog, visually verified filler columns and inch diameters; dated scope, not retailer specifications.

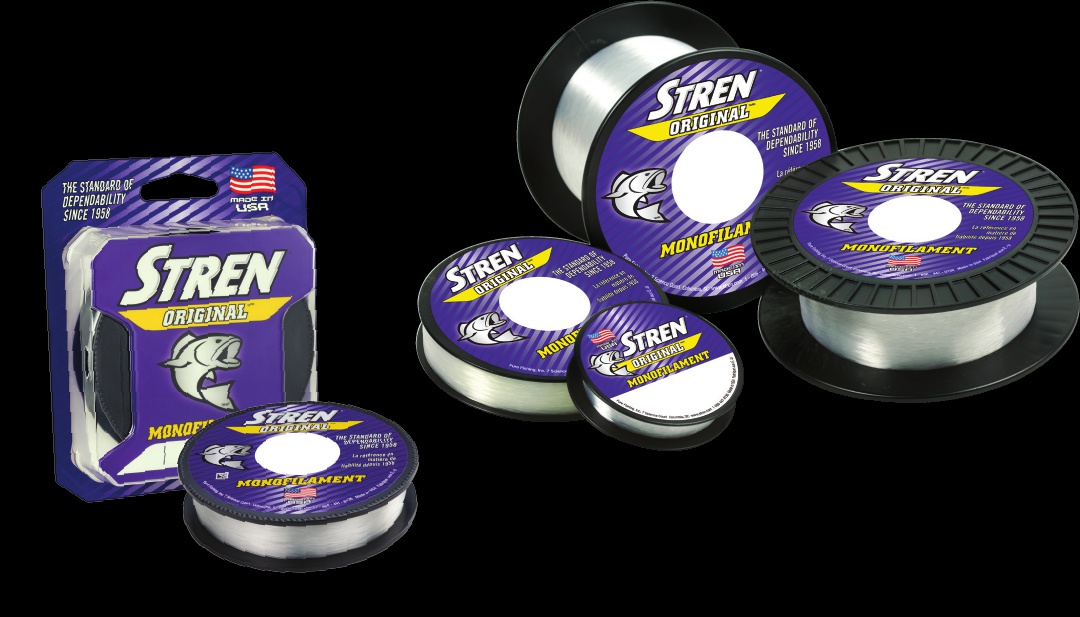

- Original manufacturer artwork Unmodified image asset referenced by the same catalog viewer.
