Diameter chart, reel capacity & backing guide

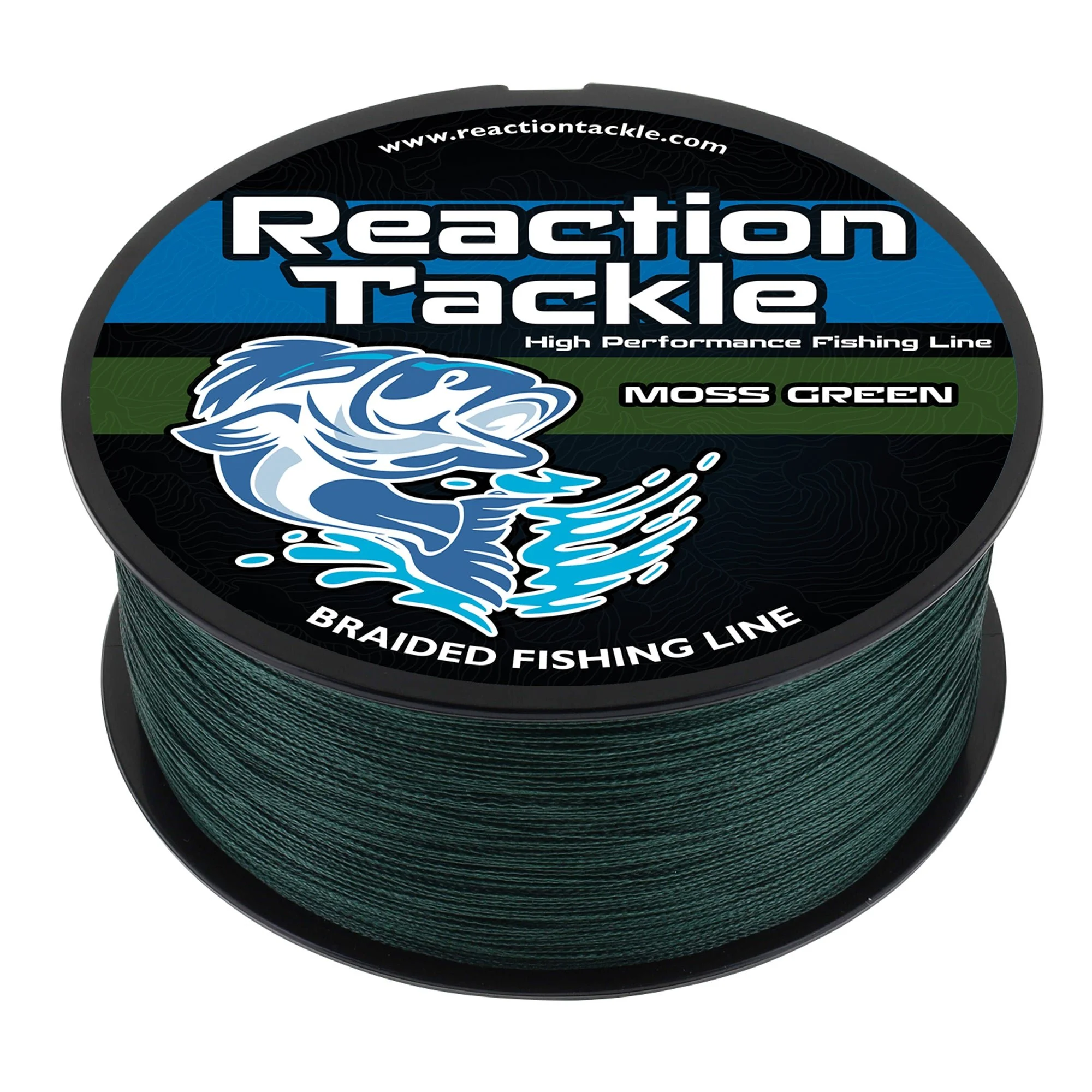

Reaction Tackle's original standard 4-strand braid, checked in Moss Green. This guide excludes X8, Ice Braid, Never Fade and Braided in USA formulations. Exact strength/length variants support these 6-80 lb rows.
Use this chart for the original Moss Green product when choosing a low-stretch braided mainline. Reaction sells several other braids with overlapping tests, so identifying four strands matters before comparing capacity. The checked 20 lb is 0.22 mm and the 65 lb is 0.45 mm, not a universal braid diameter for those pound labels.
Original standard Moss Green four-strand SKU family only; package lengths are joined by exact variant rather than applying a brand-wide length list.
| Strength | Inches | mm | Spools (yd) |
|---|---|---|---|
| 6 lb | 0.003937 | 0.100 | 150, 300, 500, 1000 |
| 8 lb | 0.004724 | 0.120 | 150, 300, 500, 1000 |
| 10 lb | 0.005512 | 0.140 | 150, 300, 500, 1000, 1500, 3000 |
| 15 lb | 0.007087 | 0.180 | 150, 300, 500, 1000, 1500, 3000 |
| 20 lb | 0.008661 | 0.220 | 150, 300, 500, 1000, 1500, 3000 |
| 25 lb | 0.009843 | 0.250 | 150, 300, 500, 1000, 1500, 3000 |
| 30 lb | 0.011024 | 0.280 | 150, 300, 500, 1000, 1500, 3000 |
| 40 lb | 0.012598 | 0.320 | 150, 300, 500, 1000, 1500, 3000 |
| 50 lb | 0.014173 | 0.360 | 150, 300, 500, 1000, 1500, 3000 |
| 65 lb | 0.017717 | 0.450 | 150, 300, 500, 1000, 1500, 3000 |
| 80 lb | 0.020472 | 0.520 | 150, 300, 500, 1000, 1500, 3000 |
Pick the test for the rod, lure and cover, then check the four-strand diameter. The 6-15 lb options are quite different physical sizes from the 50-80 lb options.
A 150-yard package and a 3,000-yard package of the same test have the same checked diameter. The larger package is supply for longer fills or multiple reels, not stronger line.
Do not copy X8 or Never Fade specifications into this chart. Similar colors and pound labels do not establish the same product construction.
This is a source-based specification and setup guide, not a hands-on review or comparative performance test.
Match the original Moss Green listing. X8, Braided in USA and Never Fade require their own specification checks.
Use a verified package size that covers casts, runs and retying. Backing can occupy the reel's remaining volume below the working braid.
Follow the reel maker's braid attachment guidance, wind under even tension and avoid overfilling just to consume the package.
No. It covers the standard Moss Green four-strand listing. X8 and Ice Braid have separate constructions and diameter charts.
Is the 65 lb diameter 0.40 mm?The current official four-strand list says 0.45 mm at 65 lb. Legacy or other-formulation values are not used here.
Is 150 yards enough?Only when the chosen working length fits within it with suitable reserve. Use the reel capacity estimate to plan any backing underneath.
Checked September 13, 2026 against the official product information linked below. Diameters are official published mm; inches are explicit mm/25.4 conversions. Practical braid packing varies with tension. Offered specifications do not establish current stock; this is not an independent diameter measurement.
Calculations use the catalog's listed inch diameters. Published inch and millimeter values may differ slightly because of rounding.
