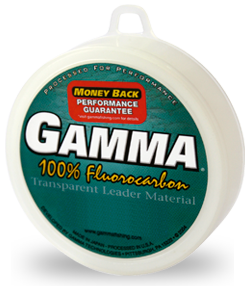

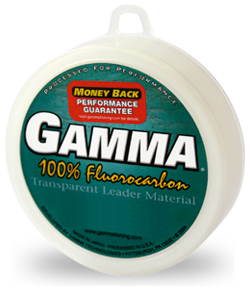

Gamma Fluorocarbon Leader
Gamma Fluorocarbon Leader
Leader diameter chart & setup guide
Gamma Fluorocarbon Leader is dedicated 100% fluorocarbon terminal material. Its U.S.-size labels are distinct from Gamma's reported actual-break figures. This guide preserves exact leader package lengths and does not calculate a full reel of fluorocarbon.
- Construction
- 100% fluorocarbon leader material
- Listed strengths
- 1.5-80 lb
- Role
- Terminal leader
Choosing this leader material
Choose it for the terminal section between the actual main line and the lure, bait or fly. Decide on leader diameter, connection and finished length for the presentation and cover; the main line determines spool capacity. The official range lists 16 lb, not 15 lb.
Gamma Fluorocarbon Leader diameter chart
Official Gamma leader tables matched to SKU and strength. The consistent 25 M table anchors each diameter; conflicting 50/100 M packages are excluded. Published yard/meter package labels are retained without converting one into an invented package.
| Strength | Inches | mm | Package length |
|---|---|---|---|
| 1.5 lb | 0.004 | 0.1 | 27.3 yd |
| 2 lb | 0.005 | 0.13 | 27.3 yd |
| 3 lb | 0.006 | 0.15 | 27.3 yd |
| 4 lb | 0.007 | 0.18 | 27.3 yd, 55 yd |
| 6 lb | 0.008 | 0.2 | 27.3 yd |
| 8 lb | 0.009 | 0.22 | 27.3 yd |
| 10 lb | 0.01 | 0.25 | 27.3 yd, 55 yd, 110 yd |
| 12 lb | 0.013 | 0.33 | 27.3 yd, 55 yd, 110 yd |
| 16 lb | 0.015 | 0.38 | 27.3 yd, 55 yd, 110 yd |
| 20 lb | 0.017 | 0.43 | 27.3 yd, 55 yd, 110 yd |
| 25 lb | 0.019 | 0.48 | 27.3 yd, 55 yd, 110 yd |
| 30 lb | 0.021 | 0.53 | 27.3 yd, 55 yd, 110 yd |
| 40 lb | 0.024 | 0.61 | 27.3 yd, 55 yd, 110 yd, 220 yd |
| 50 lb | 0.026 | 0.66 | 27.3 yd, 55 yd, 110 yd, 220 yd |
| 60 lb | 0.029 | 0.74 | 27.3 yd, 55 yd, 110 yd, 220 yd |
| 80 lb | 0.035 | 0.89 | 27.3 yd, 55 yd, 110 yd, 220 yd |
Choosing and using Fluorocarbon Leader
The 6, 8 and 10 lb U.S. sizes are 0.008, 0.009 and 0.010 inch in the supported table. Do not relabel them with the larger manufacturer-reported actual-break numbers.
The next steps include 12 and 16 lb. The reviewed current tables do not list a 15 lb U.S.-size leader; a nearby strength is not an interchangeable label.
Heavier 20-80 lb leader material serves a different terminal purpose from light tippet. Diameter, lure action, knots and abrasion exposure matter; a heavier rating alone does not guarantee a suitable rig.
Specification-based leader guide, not a hands-on knot, abrasion or breaking-strength test.
Plan by finished leaders
Choose the finished length first, then allow additional material for both knots and later trimming. Divide the package length by the amount consumed per replacement; this is a purchase estimate, not reel capacity.
Preserve metric package labeling
The 25 M spool is also labeled 27.3 yards by Gamma. Other packages are independently labeled 55, 110 or 220 yards. These are published paired labels, not a claim that each meter value is an exact mathematical conversion of its rounded yard label.
Keep typo-bearing packages out
The 50 M 6/8 lb table has wrong metric diameters and the 100 M 4/6/8 lb table has misplaced inch decimals. These package rows are excluded; the consistent 25 M evidence is retained.
Plan the line on your reel separately
A short terminal leader is not the working line that fills your spool. Use the actual main line in the calculator or Setup Wizard. A long topshot that occupies substantial spool space needs its own capacity plan.
Fluorocarbon Leader questions, answered
Does a 15 lb Gamma leader row exist?
The reviewed official U.S.-size table uses 16 lb, not 15 lb. A 15 lb option is not verified by that table and is not included in this guide.
Do actual-break numbers tell me how much drag to set?
No. They are manufacturer-reported figures and do not account for your knot, damage, rod or terminal hardware. They do not replace the printed U.S. size.
Can I use this page to calculate a full reel?
This page is for leader selection and replacement lengths. Select the actual main line for reel capacity; a short leader is not a full fluorocarbon fill.
Specifications & sources
Official Gamma leader tables matched to SKU and strength. The consistent 25 M table anchors each diameter; conflicting 50/100 M packages are excluded. Published yard/meter package labels are retained without converting one into an invented package.
- Official Gamma leader specification Official Gamma leader tables matched to SKU and strength. The consistent 25 M table anchors each diameter; conflicting 50/100 M packages are excluded. Published yard/meter package labels are retained without converting one into an invented package.
- Official Gamma leader specification Official Gamma leader tables matched to SKU and strength. The consistent 25 M table anchors each diameter; conflicting 50/100 M packages are excluded. Published yard/meter package labels are retained without converting one into an invented package.
- Official Gamma leader specification Official Gamma leader tables matched to SKU and strength. The consistent 25 M table anchors each diameter; conflicting 50/100 M packages are excluded. Published yard/meter package labels are retained without converting one into an invented package.
- Official Gamma leader specification Official Gamma leader tables matched to SKU and strength. The consistent 25 M table anchors each diameter; conflicting 50/100 M packages are excluded. Published yard/meter package labels are retained without converting one into an invented package.
