Berkley X9 Braid
Berkley X9 Braid
Diameter chart, reel capacity & backing guide
Berkley X9 uses nine PE carriers and is positioned around a smooth casting feel. Choose the exact US pound-test label here, then compare its published diameter with your reel's capacity. The same brand's overseas strength labels are not automatically interchangeable with these entries.
- Construction
- Nine-carrier PE braid
- Listed strengths
- 8-100 lb
- Line type
- Braid main line
Is X9 Braid right for your setup?
X9 is a candidate when a smooth braid main line and sensitivity are priorities. Its lighter sizes need careful spool tension and drag use; thin braid is not automatically the best choice for a baitcaster. Use the thicker options only when the presentation, cover, and tackle call for them.
Berkley X9 Braid diameter chart
US strength and package options are matched by exact product code to Berkley's official diameter records. Inch diameters are published values; the millimeter figures are conversions. Retail lengths vary by strength, particularly in the heaviest sizes.
| Strength | Inches | mm | Spools (yd) |
|---|---|---|---|
| 8 lb | 0.004 | 0.1016 | 164, 328 |
| 10 lb | 0.005 | 0.127 | 164, 328 |
| 15 lb | 0.006 | 0.1524 | 164, 328 |
| 20 lb | 0.007 | 0.1778 | 164, 328 |
| 30 lb | 0.008 | 0.2032 | 164, 328 |
| 40 lb | 0.010 | 0.254 | 164, 328 |
| 50 lb | 0.012 | 0.3048 | 164, 328 |
| 65 lb | 0.014 | 0.3556 | 164, 328 |
| 80 lb | 0.016 | 0.4064 | 164, 295 |
| 100 lb | 0.017 | 0.4318 | 164, 219 |
Choosing your X9 Braid strength
The 8-15 lb entries are thin working lines. They can make sense on suitable spinning tackle with an appropriately chosen leader, but a fine diameter calls for careful knots, drag settings, and line management.
The 20-40 lb choices cover a wider range of applications. For baitcasting, choose the line around lure weight, cover, and resistance to digging into lower wraps rather than choosing only the highest capacity number.
The 50-100 lb options are for heavier uses that justify their strength and diameter. Compare both the amount your reel can hold and the package you intend to buy; not every large spool contains the same yardage at every strength.
This is a specification-based setup guide, not a hands-on X9 Braid performance test.
Want a guided recommendation?
Continue in the Setup WizardBacking, working line & leaders
Secure the braid at the arbor
Follow the reel maker's instructions for securing braid. Where backing is used, calculate its amount from its actual diameter instead of treating a mono pound test as a braid diameter.
Keep firm, even tension
Wind braid under controlled tension and watch the fill level. Loose lower wraps can change the usable fill and encourage the working line to dig in; the estimate cannot measure your winding tension.
Match the leader to the job
A leader is selected for the presentation, cover, knots, and target fish. Its pound test does not need to match the braid label, and changing a short leader does not produce a meaningful increase in spool capacity.
X9 Braid questions, answered
X9 uses nine PE carriers; X5 uses five. Berkley emphasizes smooth casting for X9 and strength around cover for X5. Carrier count alone does not establish the capacity, knot strength, or abrasion performance of a particular spool.
Why do some imported X9 packages show different strengths?Regional labels can use different strength descriptions. This chart follows the matched US product codes and pound-test labels rather than mapping an overseas number to a US size by name alone.
Will the published diameter guarantee an exact fill?No. It provides a repeatable capacity input, but braid thickness, winding tension, and the reel's published capacity can affect the real fill. Stop at the reel manufacturer's fill level.
Specifications & sources

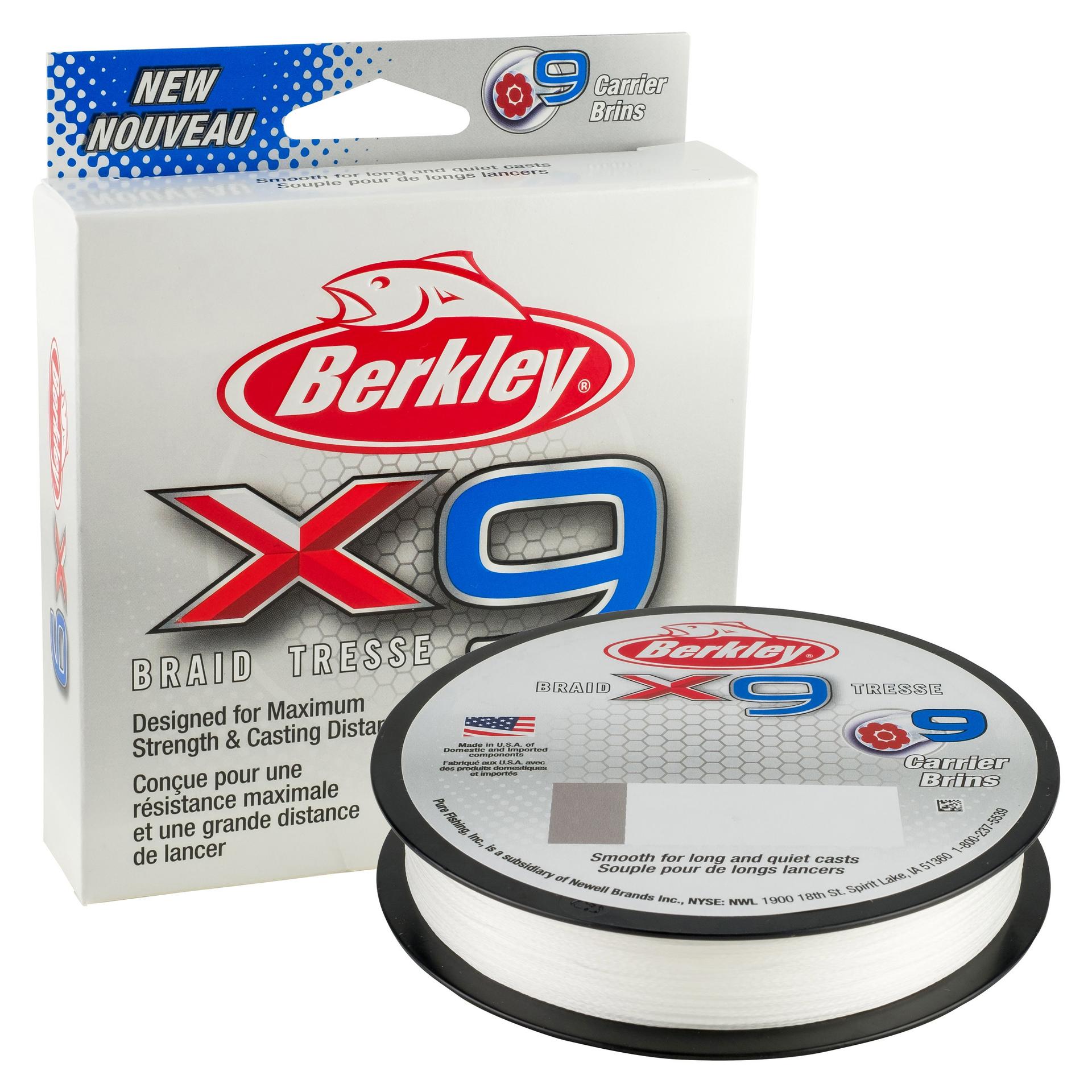

Specifications checked 2026-09-13. Only source-supported strength and package combinations are included. Official inch values are used for calculations. Check your own label when using older or imported stock. The product image identifies the model, not every selectable strength.
Calculations use the catalog's listed inch diameters. Published inch and millimeter values may differ slightly because of rounding.
- Official Berkley X9 Braid product specifications Manufacturer product identity, package options, or exact-SKU diameter evidence.
- Official Berkley X9 Braid bulk-spool specifications Manufacturer product identity, package options, or exact-SKU diameter evidence.
- Official Berkley X9 Braid diameter records Manufacturer product identity, package options, or exact-SKU diameter evidence.
