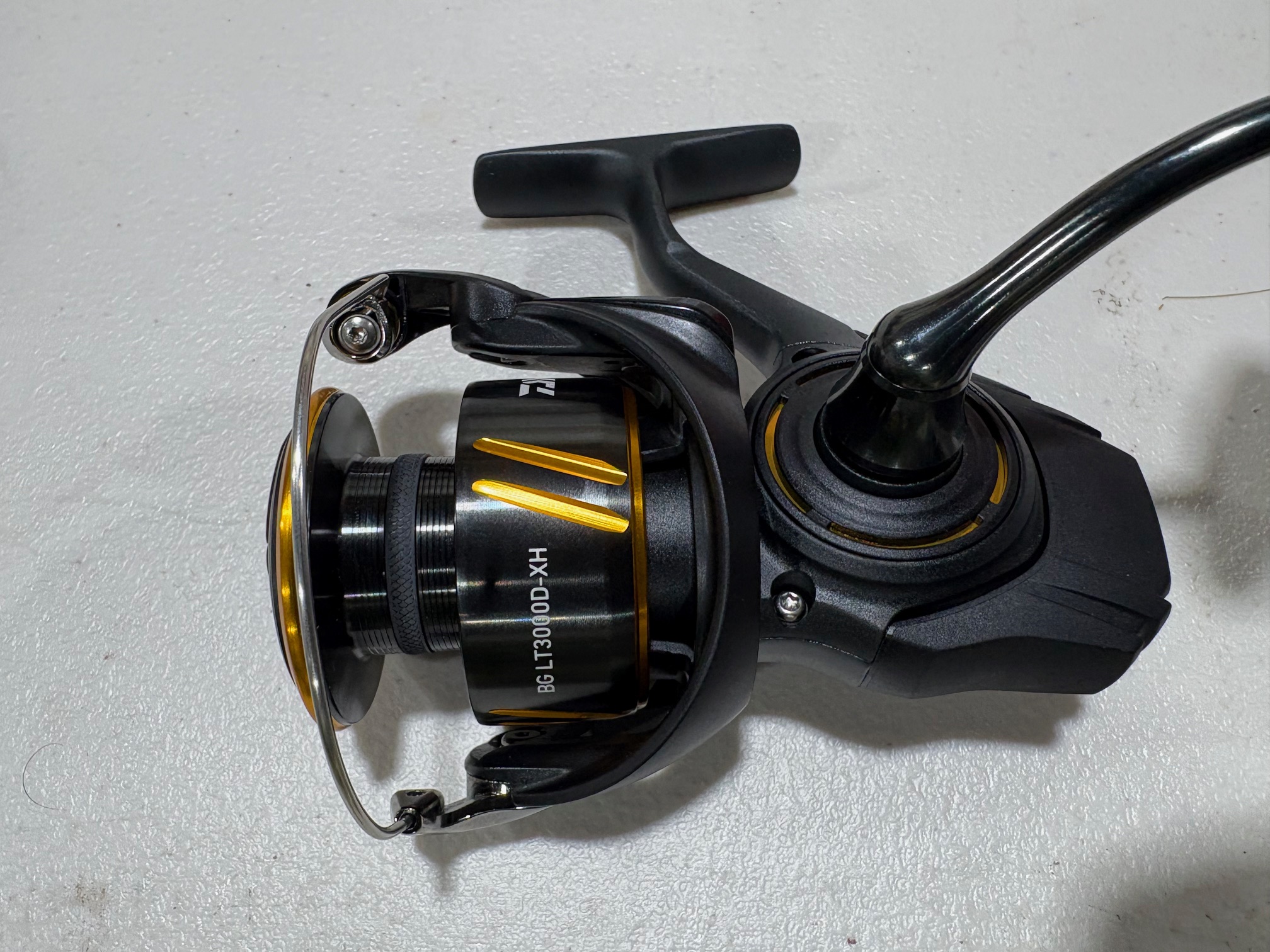

Daiwa BG LT 3000D-XH Real-World Line Capacity Test
ReelCalc Real-World Test #004
Daiwa BG LT 3000D-XH Real-World Line Capacity Test
The online specs said 12 lb mono / 220 yards and 20 lb J-Braid / 220 yards. When the reel arrived, the box and spool had much more detailed information. We put both lines on the reel to see what actually fit.
Quick Answer
Both lines looked overfilled at 220 yards. The extra details on the reel helped explain the mono result: our 12 lb line was thicker than the 12 lb line Daiwa based its rating on. We still have questions about the braid.
The first stops were where the spool looked ready to fish, not the most line we could squeeze on.
First, the Online Ratings Raised a Question
Daiwa's online table listed these two ratings for BGLT3000D-XH:
- 12/220: 220 yards of 12 lb mono.
- 20/220: 220 yards of 20 lb J-Braid.
That caught our attention. Mono and braid with those strength labels can be very different thicknesses. Would 220 yards of each really fit? We bought the reel to find out.
The online table says J-Braid, but does not name a particular version such as X4.
Then the Reel Arrived: The Box and Spool Told Us More

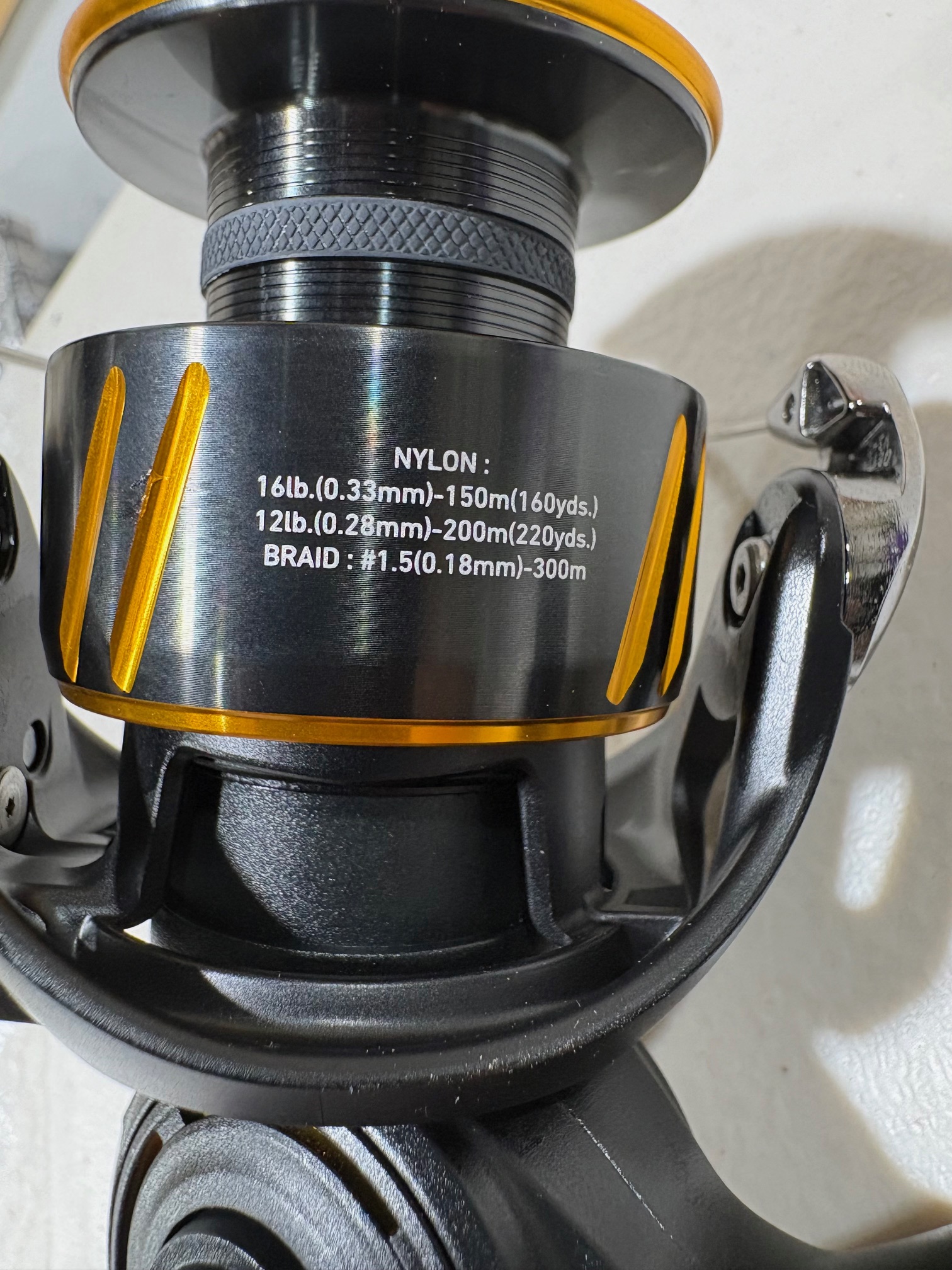

The box and spool had much more detailed capacity information than the online listing. They included line diameter, which simply means how thick the line is.
Here is the important part: Daiwa's 12 lb / 220 yd mono rating uses 0.28 mm line. Our 12 lb Trilene XL is 0.33 mm. Same pound test, thicker line, less room on the spool.
For context, 0.28 mm is very thin compared with familiar 12 lb mono sold in the U.S. Besides our 0.33 mm Trilene XL, Sufix Elite 12 lb is about 0.36 mm (0.014 in). Thinner options exist, so always check the diameter rather than going by pound test alone.

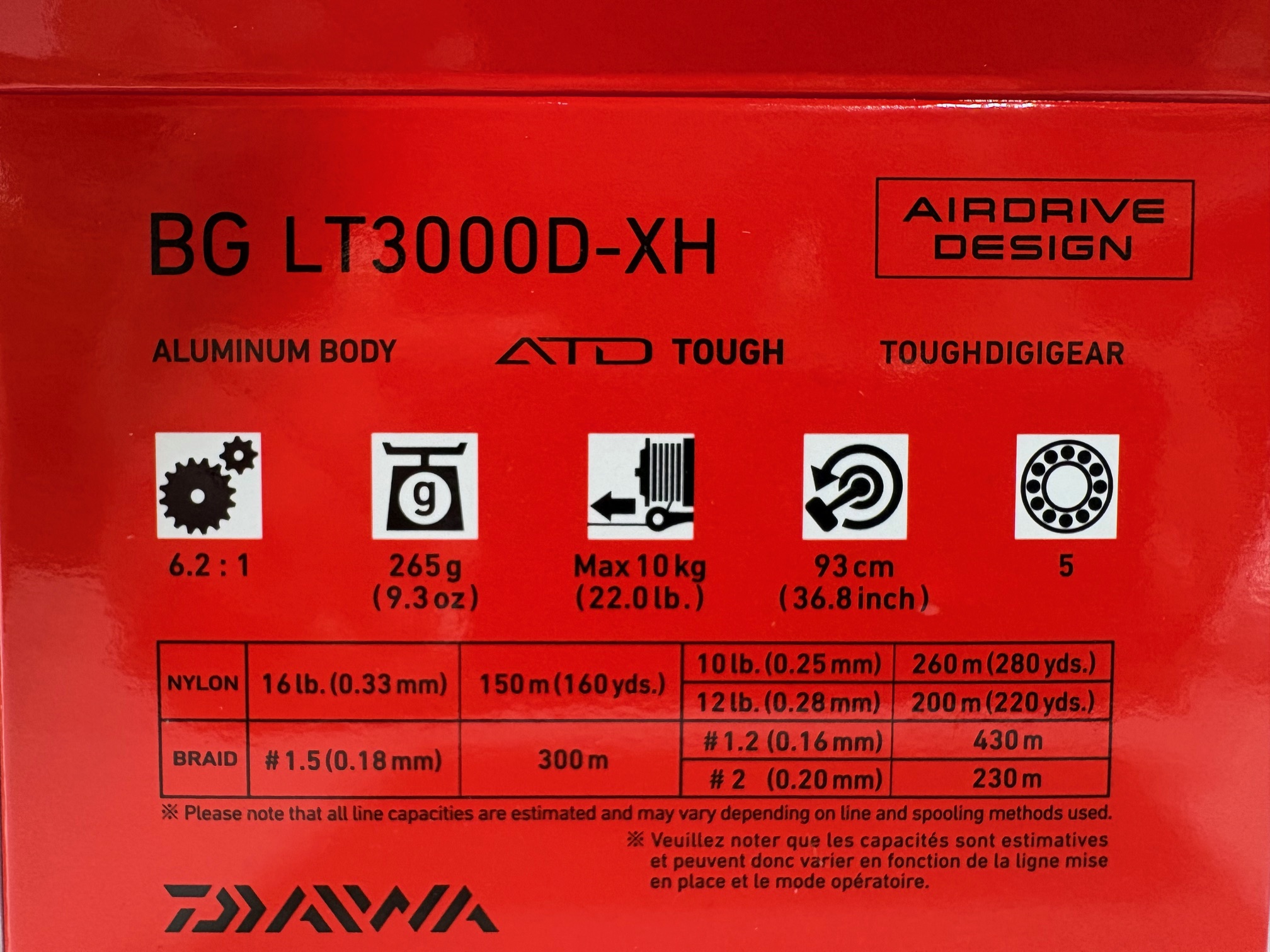

All capacity ratings printed on the box
| Line marking | Printed capacity |
|---|---|
| 10 lb nylon / 0.25 mm | 260 m / 280 yd |
| 12 lb nylon / 0.28 mm | 200 m / 220 yd |
| 16 lb nylon / 0.33 mm | 150 m / 160 yd |
| PE #1.2 braid / 0.16 mm | 430 m |
| PE #1.5 braid / 0.18 mm | 300 m |
| PE #2 braid / 0.20 mm | 230 m |
Meter and yard amounts are shown as Daiwa printed them, with its rounding. The box also notes that capacity can vary with the line and how it is spooled.
The Lines and Counter

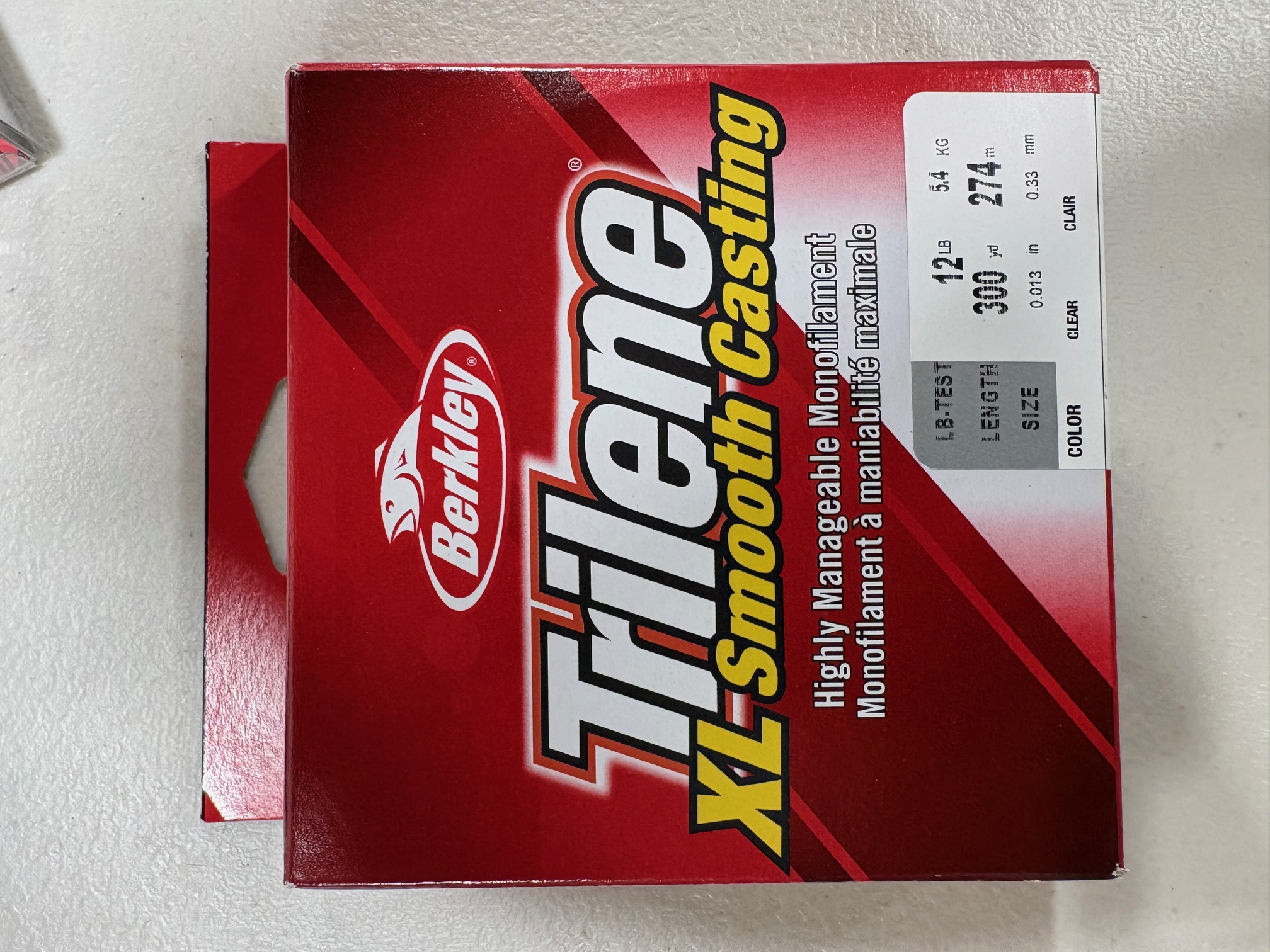

Berkley Trilene XL
- Type
- 12 lb nylon monofilament
- Package diameter
- 0.013 in / 0.33 mm
- Supply spool
- 300 yd / 274 m

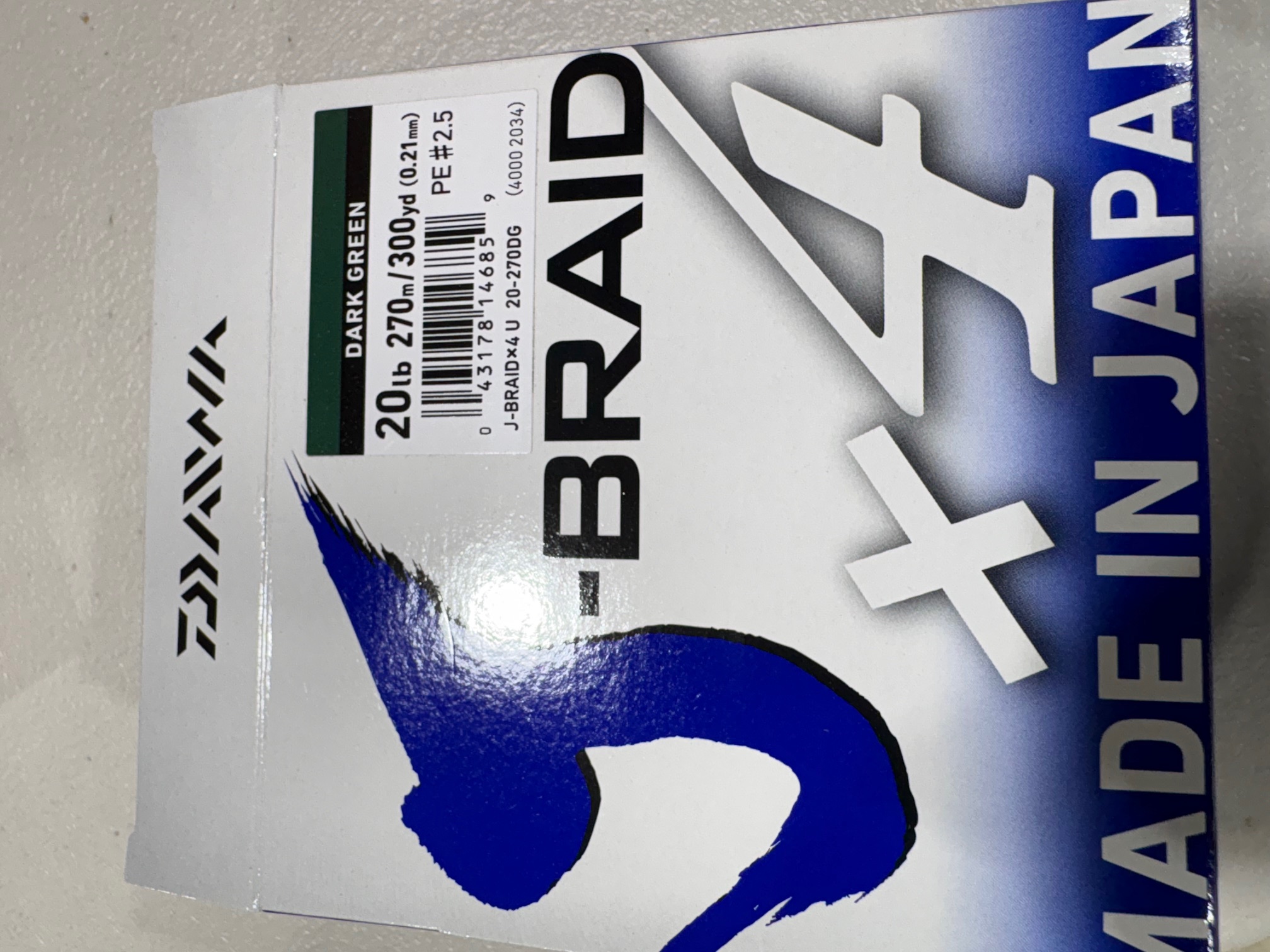

Daiwa J-Braid X4
- Type
- 20 lb braid
- Package diameter
- 0.21 mm / PE #2.5
- Supply spool
- 300 yd / 270 m
Each test started with an empty spool, with no backing. We used the same Rapala digital line counter, kept tension on the line, and watched the fill level.
As an Amazon Associate, ReelCalc may earn from qualifying purchases.
What Happened With 12 lb Mono?

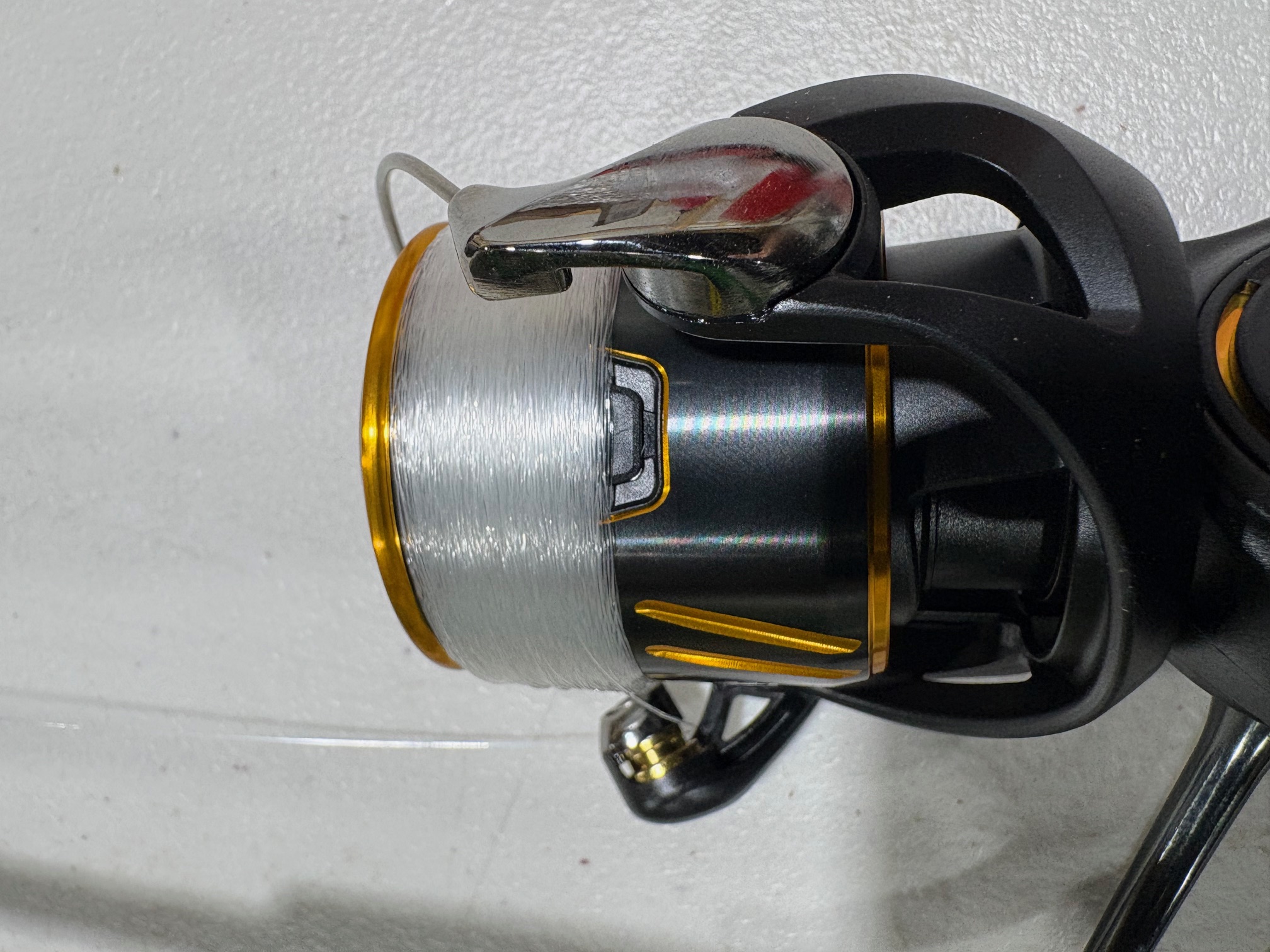

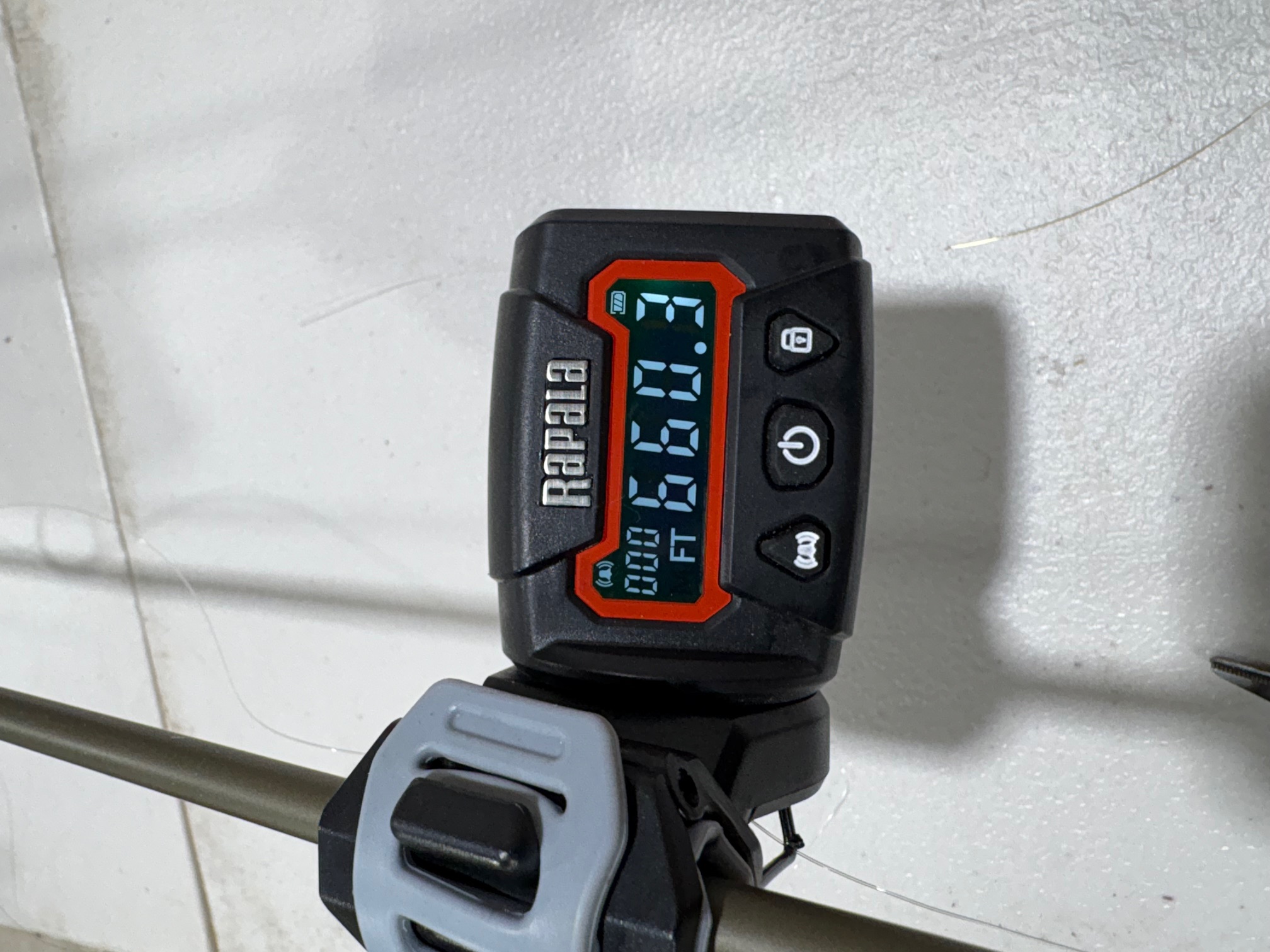

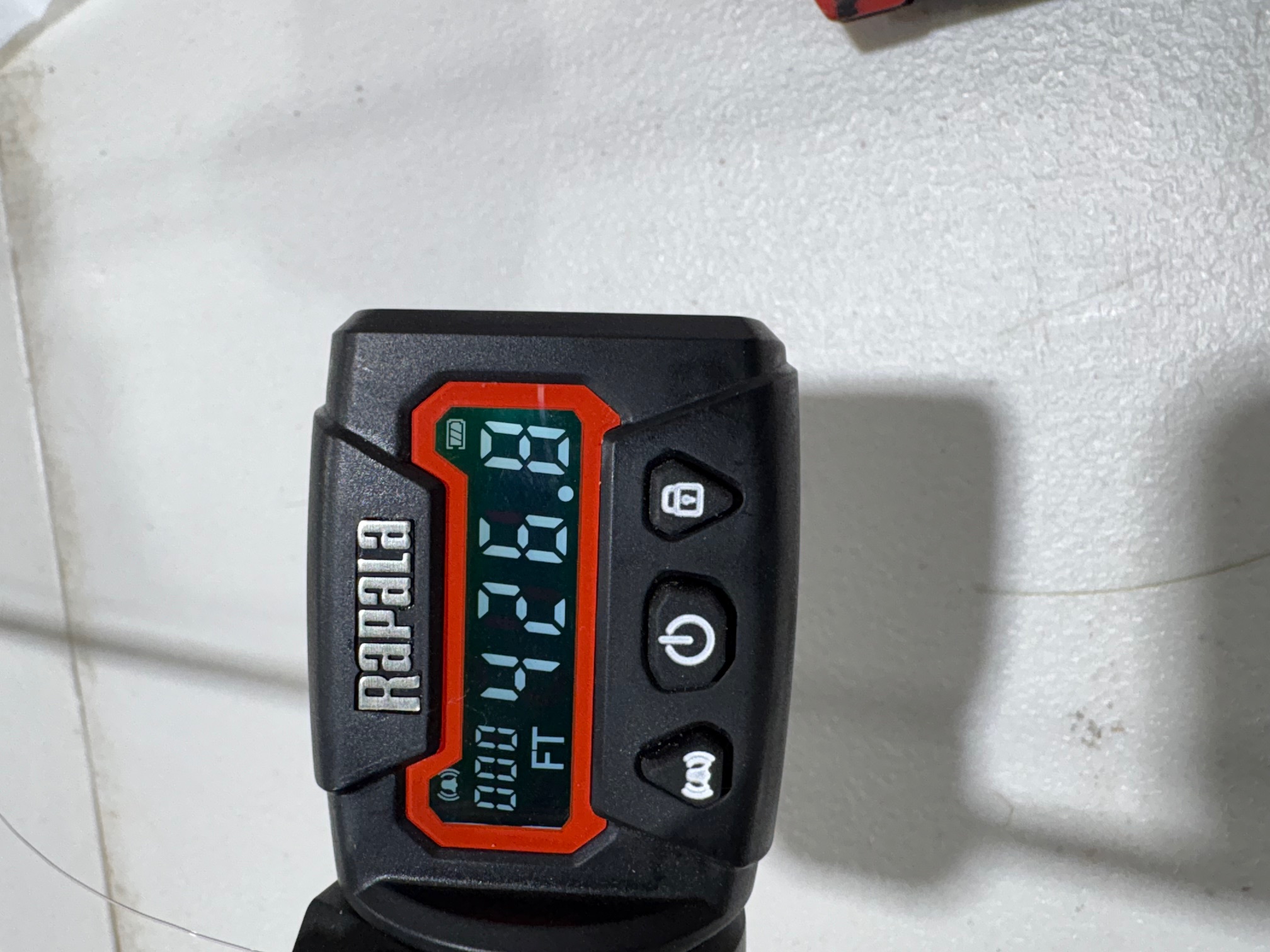

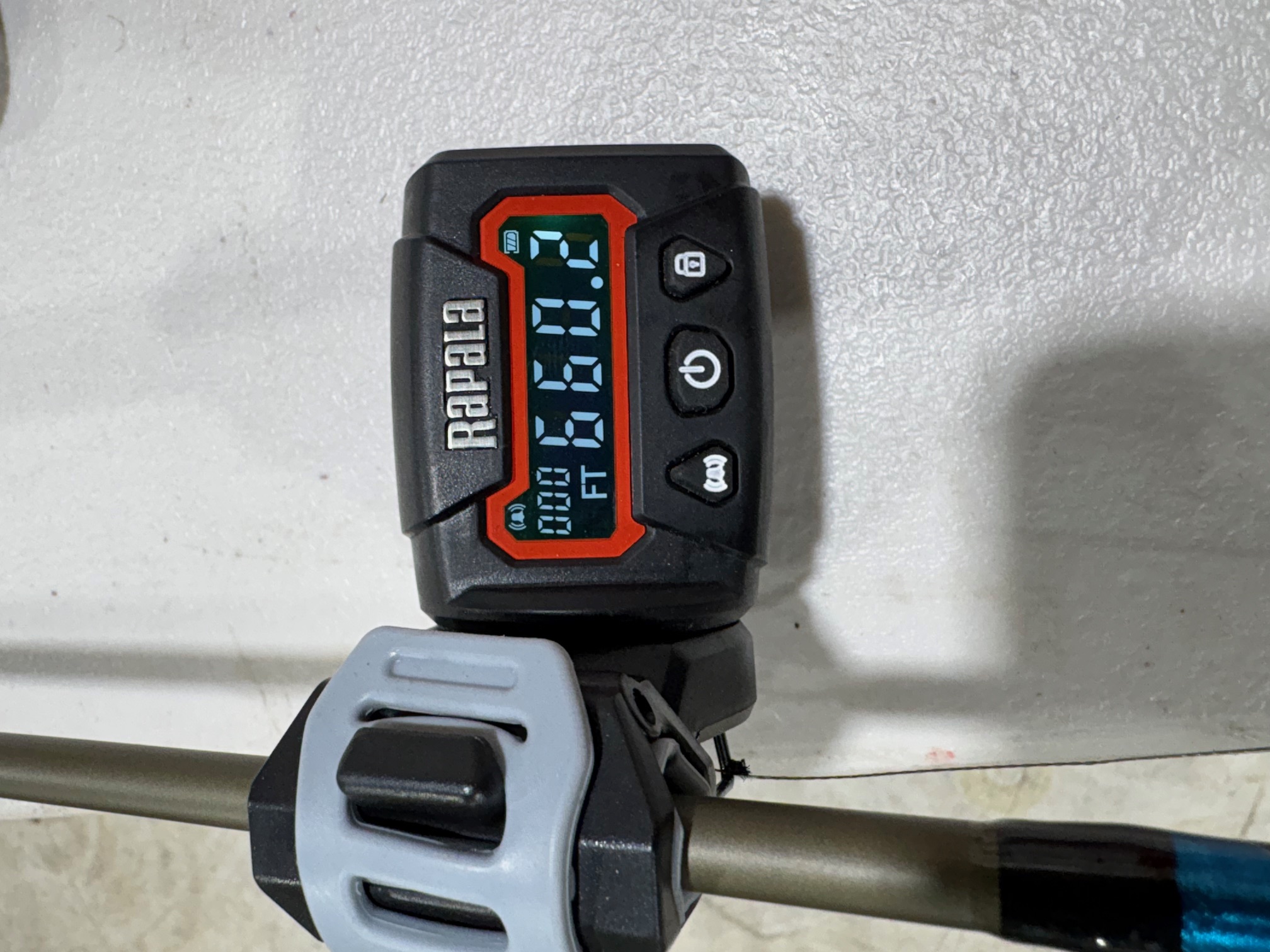

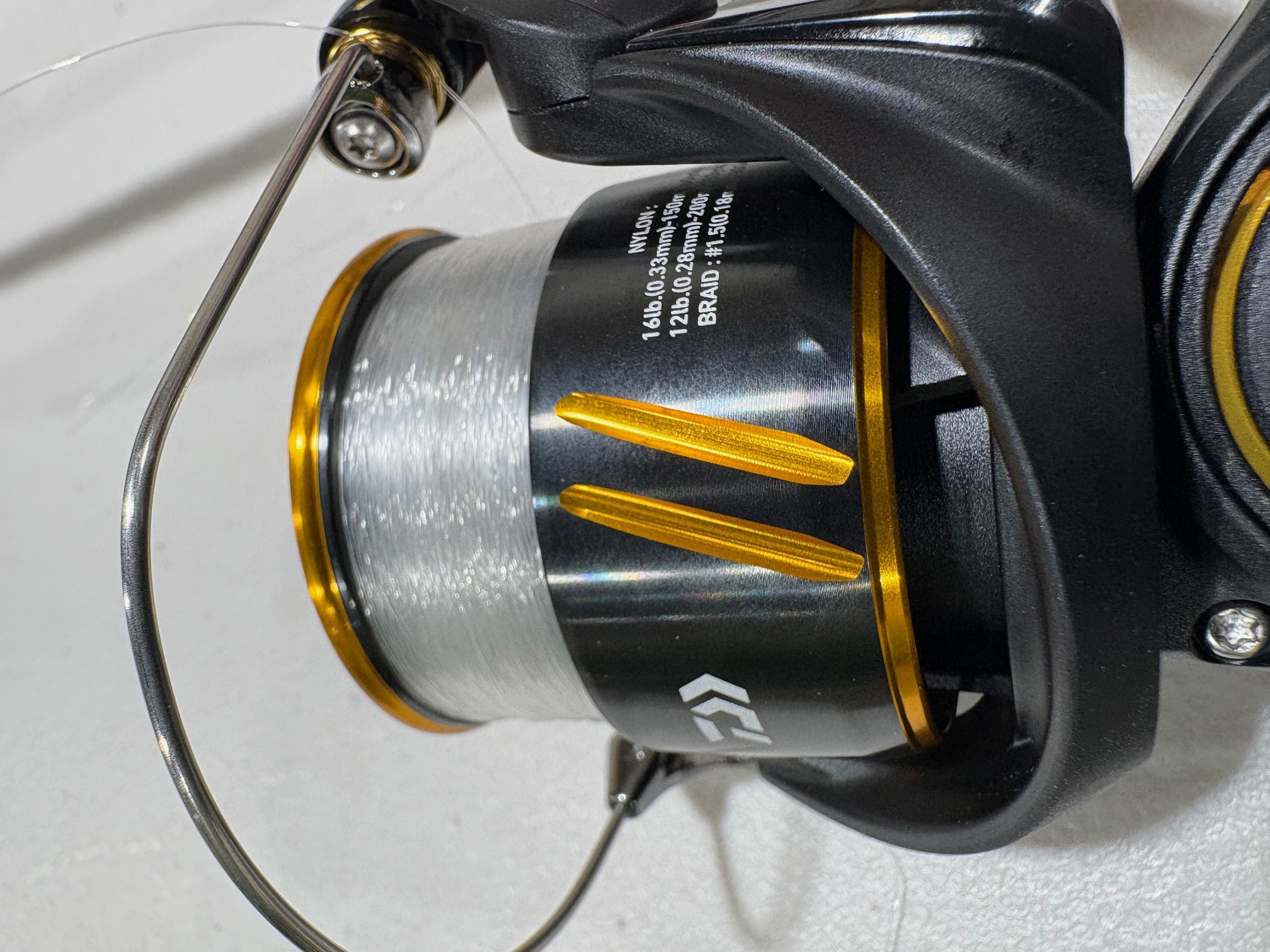

We first stopped at about 142.3 yards, when the spool looked ready to fish. Then we kept going to the online rating of 220 yards total. At that point, it looked overfilled.
Could we have added more? Yes. At our first stop, we could clearly see room for roughly another 18 yards. That would bring the fill to about 160 yards, right in line with Daiwa's 0.33 mm / 160-yard spool rating. We did not measure or photograph a separate 160-yard fill.
Why 160 Yards Makes More Sense Than 220
Daiwa's spool says 0.33 mm nylon / 160 yards. Our Trilene XL is that same thickness. Daiwa calls its 0.33 mm line 16 lb, while Berkley calls ours 12 lb. The thickness is what takes up spool space, not the strength printed on the package.
So the online rating was not necessarily wrong. It left out an important detail: the 12 lb mono behind that 220-yard rating was thinner than ours.
What Happened With 20 lb Braid?

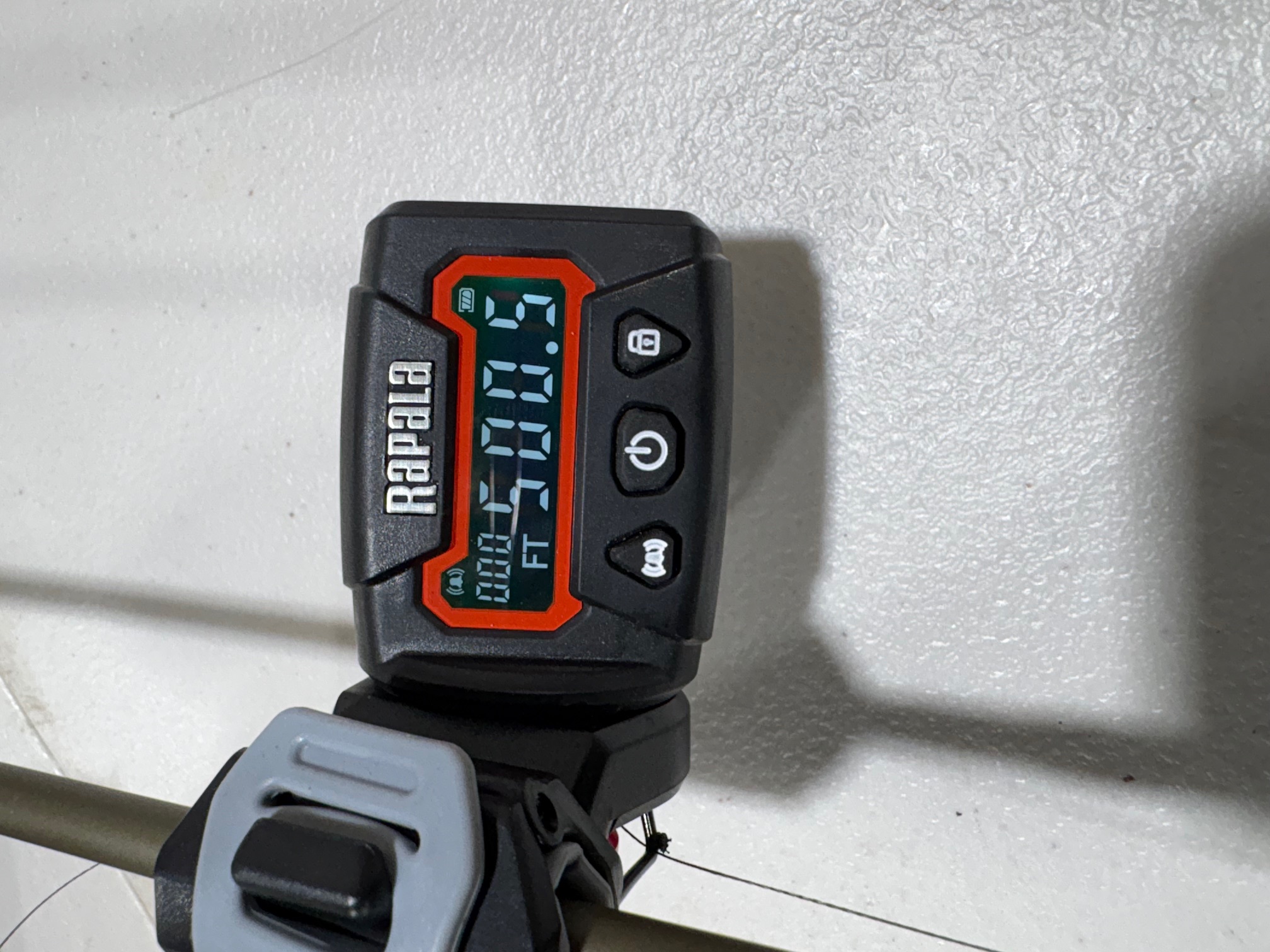

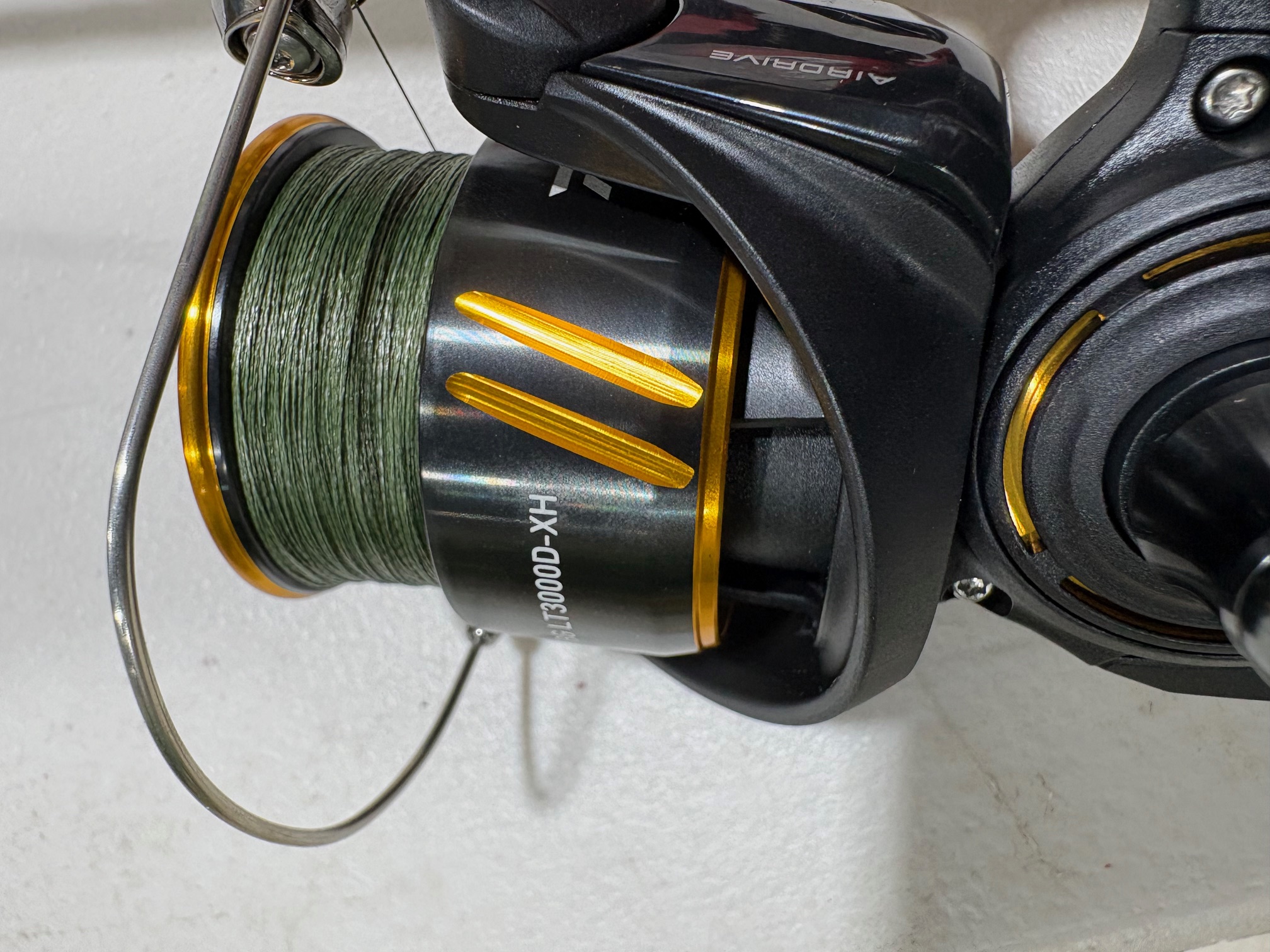

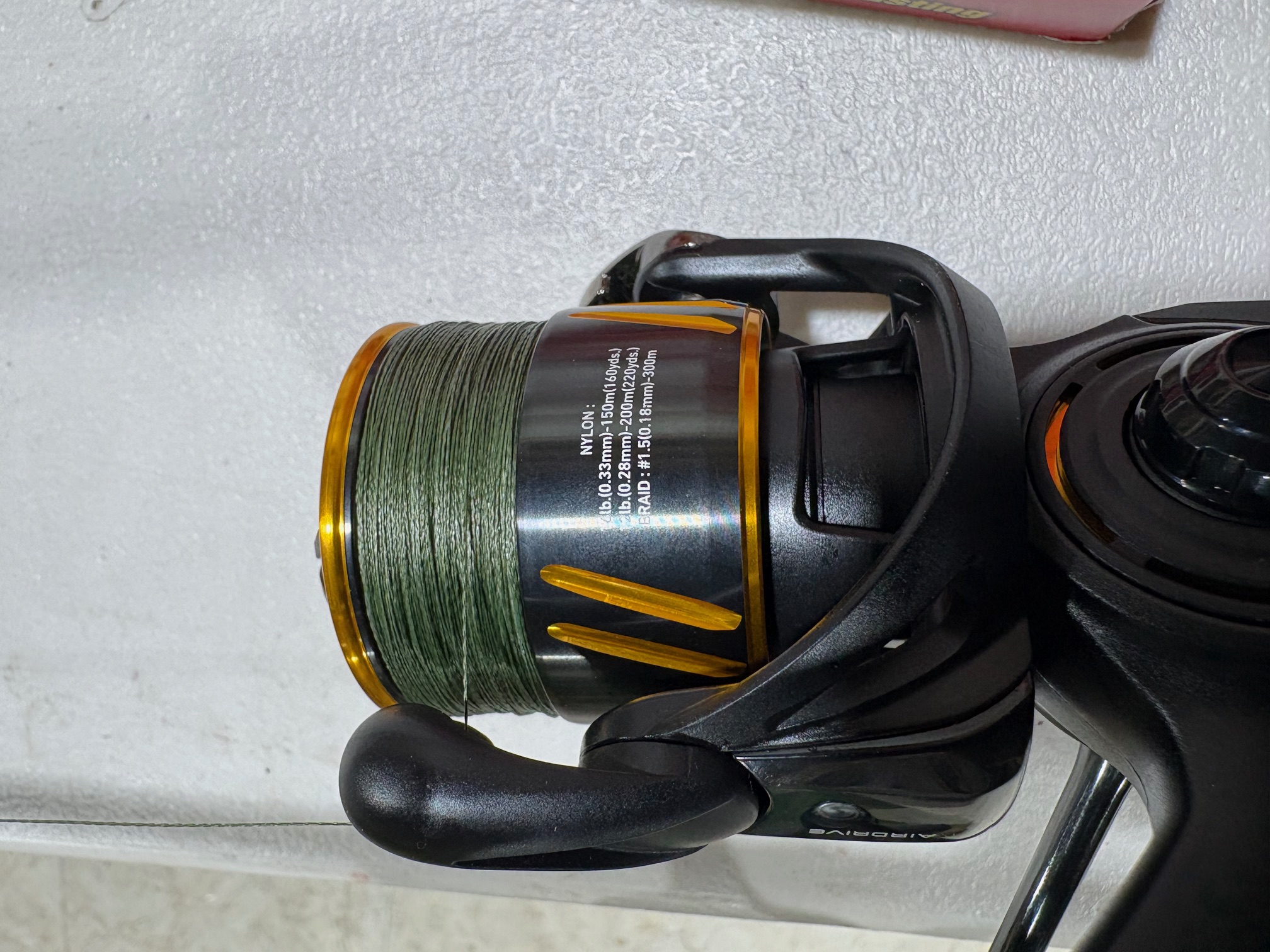

After removing all the mono, we spooled the 20 lb J-Braid X4. We first stopped at about 166 yards (166.8 yards on the counter), which was a comfortable fill. A little more could have been added if needed while still staying comfortable, but definitely not 220 yards. When we continued to that amount, the spool was visibly overfilled.
We did not measure how much extra braid could be added while keeping a comfortable fill. The first stop was not a maximum-capacity measurement.
What Could Explain the Braid Overfill?
Unlike the mono, line thickness alone does not explain this result well. Even a calculation using the more detailed braid rating on the box suggests more line than we were comfortable fishing with.
- How tightly and evenly it was wound. Looser wraps or line building up in one area could use more room. We kept tension on the line, but did not measure it.
- The braid's thickness and how it packs. We used the 0.21 mm package figure. We did not measure the line ourselves, and that number alone may not fully describe how the woven line fills the spool.
- A different stopping point. Daiwa may use a different fill level when setting its capacity rating. We have not confirmed that level.
- How the published rating was established. It could reflect another J-Braid version, a calculation, different spooling conditions, or an optimistic estimate. We do not yet know which method Daiwa used for this exact rating.
These are possibilities, not findings. We do not yet know what caused the difference. What we could see was that 220 yards looked overfilled.
The Results at a Glance
| Test line | Where we first stopped | ReelCalc estimate | At about 220 yd |
|---|---|---|---|
| Berkley Trilene XL 12 lb | 142.3 yd | 255.1 yd | Visibly overfilled |
| Daiwa J-Braid X4 20 lb | 166.8 yd | 264 yd | Visibly overfilled |
First stops are approximate amounts measured by the counter, not maximum capacities. We checked ReelCalc while writing this page, not before the test.
What This Taught Us About ReelCalc
ReelCalc estimated too much line for both of these spool-ups. Selecting the exact line helps, but the calculator also needs the right line thickness behind the reel's rating.
For mono, ReelCalc had assumed a thicker line for Daiwa's 220-yard rating. That made the reel seem to hold more than it should. Using the thickness printed on the spool instead gives about 158 yards, close to Daiwa's 160-yard rating for our line's thickness.
That helps explain the mono. It does not solve the braid difference, so we need more testing before changing how braid is calculated.
Calculation details
The mono calculation is 220 × (0.28 / 0.33)2 = about 158 yards. It adjusts Daiwa's 220-yard rating for our thicker line.
For braid, the box lists 0.20 mm / 230 m. Our X4 is labeled 0.21 mm. Adjusting that box rating for the slightly thicker line gives about 228 yards. Our first stop of 166.8 yards was comfortable with a little room left, but 220 yards already looked overfilled.
The current saved mono reference is 0.014 in (about 0.356 mm) / 220 yd, rather than the spool's 0.28 mm / 220 yd. The current braid estimate uses pound-test ratings and typical braid diameters, giving 264 yd; range 235-295 yd.
ReelCalc uses stored line sizes of 0.013 in for Trilene XL and 0.008 in for X4. The separate calculations above use the photographed millimeter sizes. Those inch and millimeter labels are rounded, so they do not convert exactly.
A Few Things to Keep in Mind
This was one reel and one spool-up with each line. We judged the fill by eye and used a Rapala counter for length. We did not measure the gap below the spool lip, tension, or line thickness ourselves.
The photos show what happened in our test. They do not promise the exact same yardage for every angler.
The Takeaway
Check line thickness, not just pound test. The details on the box and spool helped explain why our mono did not fit the simple online rating. The braid needs another look. In either case, watch the spool instead of forcing on a set number of yards.
