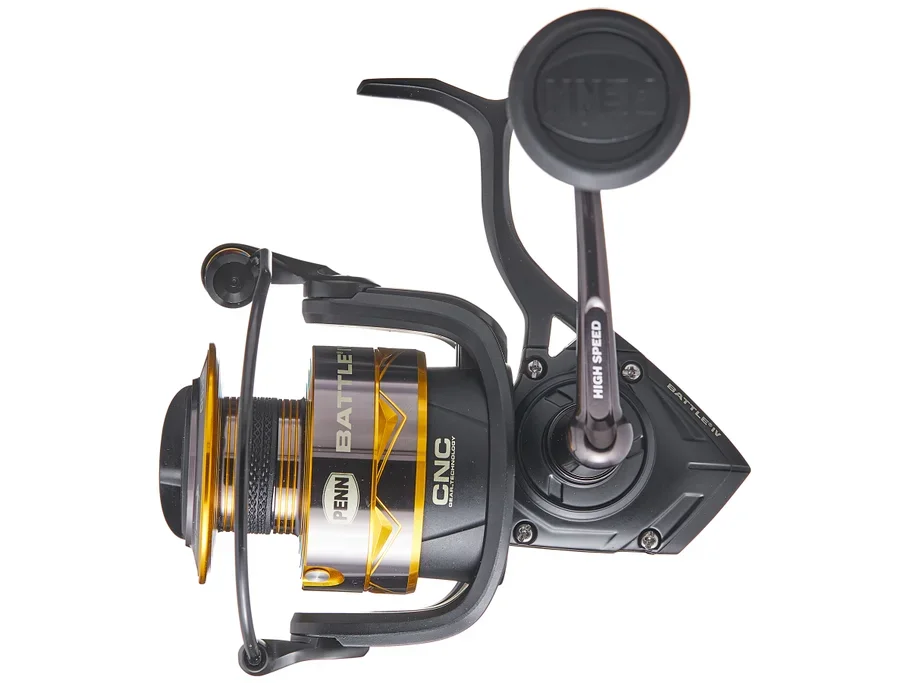

PENN Battle IV 5000 Line Capacity & Reel Setup Guide
The PENN Battle IV 5000 is a heavier spinning reel built for anglers who need more line capacity, more drag, and more confidence around bigger fish. This size fits catfish, striped bass, pier fishing, heavier inshore use, bank fishing, light surf work, pike, salmon, and larger bait or lure setups better than the smaller Battle IV sizes.
This page covers the PENN Battle IV 5000 line capacity, reel specs, braid capacity, mono capacity, and setup guidance so you can spool it correctly. Since the 5000-size spool can hold a lot of braid, the pre-loaded ReelCalc backing calculator below can help you avoid wasting expensive main line under line you may never use.
PENN Battle IV 5000 Specs
| Reel Size | 5000 |
| Model | BTLIV5000 |
| Gear Ratio | 5.6:1 |
| Ball Bearings | 6 |
| Line Retrieve | 36 inches per crank |
| Weight | 17.9 oz |
| Max Drag | 25 lb |
| Mono Line Capacity | 12/225, 15/200, 20/135 |
| Braid Line Capacity | 20/420, 30/300, 40/240 |
The Battle IV 5000 is where this reel family starts to feel noticeably more serious. It is no longer just a larger freshwater reel. It is a better match for heavier braid, longer casts, stronger fish, and fishing situations where extra line on the spool actually matters. If you are using bait from the bank, throwing larger swimbaits, fishing current, targeting striped bass or catfish, or setting up a reel for light saltwater use, the 5000 size makes more sense than trying to stretch a smaller 3000 or 4000 reel too far.
PENN Battle IV 5000 Line Capacity
The PENN Battle IV 5000 is listed with mono line capacity of 12 lb / 225 yards, 15 lb / 200 yards, and 20 lb / 135 yards. It is also listed with braid capacity of 20 lb / 420 yards, 30 lb / 300 yards, and 40 lb / 240 yards.
Those braid numbers are exactly why backing matters on this reel. If you only plan to fish 150 to 200 yards of braid on top, filling the entire spool with premium braid can waste line and money.
| Line Type | Line Rating | Capacity |
|---|---|---|
| Monofilament | 12 lb | 225 yards |
| Monofilament | 15 lb | 200 yards |
| Monofilament | 20 lb | 135 yards |
| Braid | 20 lb | 420 yards |
| Braid | 30 lb | 300 yards |
| Braid | 40 lb | 240 yards |
The Battle IV 5000 has enough spool capacity that small diameter differences can change the final fill more than many anglers expect. A thinner 30 lb braid may leave you with extra space, while a thicker 30 lb braid may fill the spool sooner. Instead of guessing, use the actual line diameter and let ReelCalc estimate the backing amount.
The calculator on this page is already pre-loaded with the PENN Battle IV 5000 factory line capacity specs, so you do not have to enter the reel information from scratch.
Use the calculator below to estimate how much backing and main line you need for your Battle IV 5000. This is especially useful on a reel this size because the spool can hold far more braid than many anglers actually need for normal fishing. Mono backing lets you fill the spool correctly while keeping your expensive braid where it matters: on top.
Choose the line you want to fish, enter the line diameter if needed, and select how much main line you want on top. ReelCalc will estimate how much backing should go underneath.
Use the ReelCalc Fishing Reel Backing Calculator
Reel Specs
Premium Line
Backing
Best Line Setup for the PENN Battle IV 5000
The PENN Battle IV 5000 is best treated as a heavier spinning reel, not just a slightly larger 4000. For most setups, braid with mono backing and a leader is the most practical way to spool it. The reel has enough capacity for serious braid yardage, but most anglers do not need to bury hundreds of yards of premium braid under the line they actually fish.
For catfish, striped bass, pike, salmon, heavier inshore use, and light surf or pier fishing, 30 lb braid is a strong all-around starting point. If you are fishing heavier structure, bigger baits, or situations where abrasion and pulling power matter more, 40 lb braid can make sense.
| Fishing Use | Suggested Line Setup |
|---|---|
| Catfish and heavier freshwater | 30–40 lb braid with mono backing |
| Striped bass and salmon | 30–40 lb braid with a leader |
| Pike and larger river fish | 20–30 lb braid with a leader |
| Light surf, pier, and inshore | 30–40 lb braid with mono backing |
| Straight mono setups | 12–20 lb mono |
For many anglers, 30 lb braid is the sweet spot on the PENN Battle IV 5000. It gives the reel enough strength for larger fish while still keeping casting manageable. If the reel will be used around rocks, bridge pilings, heavy current, saltwater structure, or bigger bait rigs, 40 lb braid is a better choice. Straight mono works too, but on this reel size, braid with backing is usually the more efficient setup.
