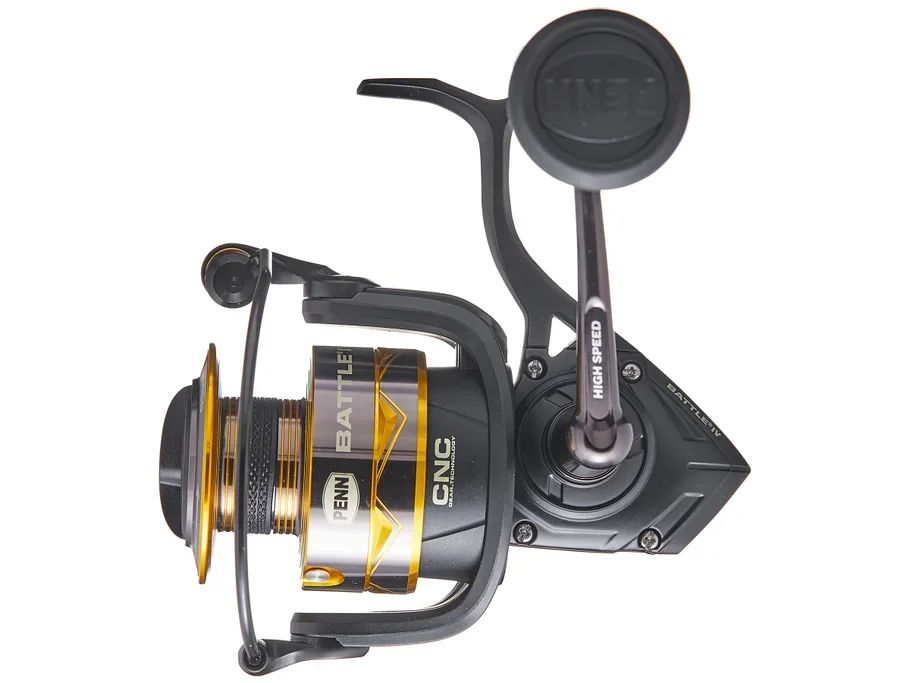

PENN Battle IV 4000 Line Capacity & Reel Setup Guide
The PENN Battle IV 4000 is the size where this reel starts to move out of everyday freshwater territory and into heavier all-around use. It can still work for bass, walleye, and river fishing, but the larger spool and tougher build make it a better fit for striped bass, catfish, pike, light inshore fishing, kayak fishing, bank fishing, and bigger braid-to-leader setups.
This page covers the PENN Battle IV 4000 line capacity, reel specs, braid capacity, mono capacity, and setup guidance so you can spool it correctly. The factory ratings are a useful starting point, but actual capacity changes with line diameter. Use the pre-loaded ReelCalc backing calculator below to estimate how much backing and main line you need for your Battle IV 4000.
PENN Battle IV 4000 Specs
| Reel Size | 4000 |
| Model | BTLIV4000 |
| Gear Ratio | 6.2:1 |
| Ball Bearings | 6 |
| Line Retrieve | 37 inches per crank |
| Weight | 12.1 oz |
| Max Drag | 15 lb |
| Mono Line Capacity | 8/270, 10/220, 12/165 |
| Braid Line Capacity | 15/360, 20/260, 30/185 |
The Battle IV 4000 is a practical choice when a 3000-size reel feels a little underpowered, but a 5000-size reel feels like more reel than you want to cast all day. It has enough spool capacity for heavier braid and longer casts, but it is still manageable for anglers fishing from shore, kayaks, jetties, riverbanks, and inshore spots. This is one of the more useful Battle IV sizes if your fishing overlaps freshwater and saltwater.
PENN Battle IV 4000 Line Capacity
The PENN Battle IV 4000 is listed with mono line capacity of 8 lb / 270 yards, 10 lb / 220 yards, and 12 lb / 165 yards. It is also listed with braid capacity of 15 lb / 360 yards, 20 lb / 260 yards, and 30 lb / 185 yards.
These ratings are helpful, but they are still based on rated line sizes. The exact amount of line your reel holds can change depending on the brand, material, and actual diameter of the line you spool.
| Line Type | Line Rating | Capacity |
|---|---|---|
| Monofilament | 8 lb | 270 yards |
| Monofilament | 10 lb | 220 yards |
| Monofilament | 12 lb | 165 yards |
| Braid | 15 lb | 360 yards |
| Braid | 20 lb | 260 yards |
| Braid | 30 lb | 185 yards |
The Battle IV 4000 is a good example of why line diameter matters. On paper, the reel holds a lot of 15 or 20 lb braid. But if you use a thicker braid, or if you only want 150 to 200 yards of main line on top, backing becomes useful. ReelCalc lets you estimate the backing amount instead of guessing at the spool.
The calculator on this page is already pre-loaded with the PENN Battle IV 4000 factory line capacity specs, so you do not have to enter the reel information from scratch.
Use the calculator below to estimate how much backing and main line you need for your Battle IV 4000. This is especially useful on a 4000-size reel because many anglers do not need to fill the entire spool with premium braid. A backing setup can save line, save money, and still leave plenty of braid on top for real fishing.
Choose the line you want to fish, enter the line diameter if needed, and select how much main line you want on top. ReelCalc will estimate how much backing should go underneath.
Use the ReelCalc Fishing Reel Backing Calculator
Reel Specs
Premium Line
Backing
Best Line Setup for the PENN Battle IV 4000
The best PENN Battle IV 4000 setup depends on whether you are using it more for freshwater power fishing or light saltwater. For river smallmouth, walleye, bass, and general heavier freshwater use, 15 to 20 lb braid with a leader is usually plenty. For striped bass, light inshore fishing, docks, current, or bigger fish, 20 to 30 lb braid is the better range.
This is also a reel where backing makes practical sense. If you buy a 150- or 200-yard spool of braid, you can use mono backing underneath instead of buying extra braid just to fill empty spool space.
| Fishing Use | Suggested Line Setup |
|---|---|
| Heavier freshwater fishing | 15–20 lb braid with a leader |
| River smallmouth and walleye | 15–20 lb braid with a leader |
| Striped bass and light inshore | 20–30 lb braid with a leader |
| Catfish, pike, and bank fishing | 20–30 lb braid with a leader |
| Straight mono setups | 8–12 lb mono |
For most anglers, 20 lb braid is the sweet spot on the PENN Battle IV 4000. It gives the reel enough strength for current, light inshore use, bigger freshwater fish, and mixed-cover fishing without going heavier than necessary. If the reel will mostly be used for bass, walleye, and river fishing, 15 lb braid is still a good option. If it will see striped bass, catfish, pike, or rougher saltwater structure, 30 lb braid can make sense.
